The ON Semiconductor NCP5810DMUTXG is a high-performance, integrated audio amplifier designed to deliver exceptional sound quality with high efficiency, making it an ideal choice for portable applications where space and power consumption are critical considerations.

Key Features

• High Efficiency: The NCP5810DMUTXG employs a Class D amplifier topology, offering superior power efficiency compared to traditional amplifiers, which is crucial for battery-powered devices.
• Output Power: It is capable of delivering up to 2.6W of continuous output power into a 4 Ohm load, providing robust audio performance for its size.
• Low Quiescent Current: The device features a low quiescent current, which helps extend battery life in portable applications.
• Superior Sound Quality: ON Semiconductor has engineered the NCP5810DMUTXG to provide high-quality audio reproduction with low distortion and noise, ensuring an excellent listening experience.
• Multiple Operating Modes: The amplifier supports various operating modes, including a fully differential input mode, to accommodate different audio signal requirements.
• Protection Features: It includes built-in thermal shutdown and output short-circuit protection, enhancing the product's reliability and lifespan.

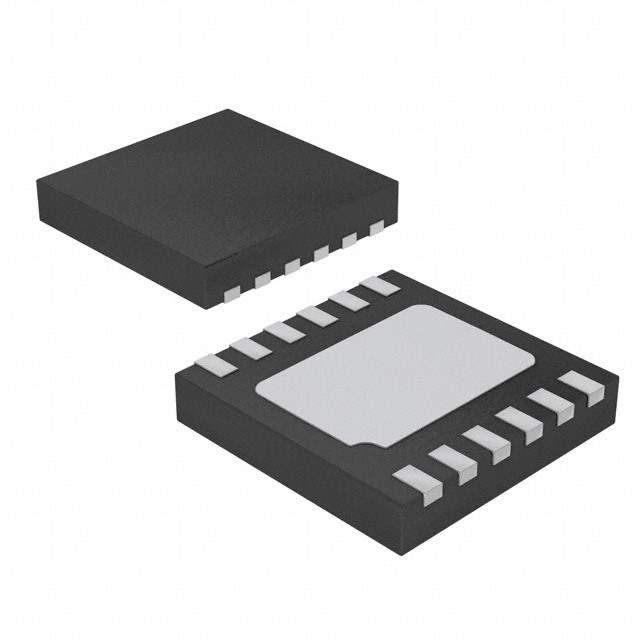

• Compact Package: The NCP5810DMUTXG comes in a compact, space-saving Micro8 package, which is highly beneficial for space-constrained applications.

Applications

The NCP5810DMUTXG is versatile and can be used in a wide range of portable electronic devices. Its primary applications include:

• Mobile Phones
• Tablets
• Portable Media Players
• Handheld Gaming Devices
• GPS Units
• Other Portable Electronics Requiring High-Quality Audio Amplification

Conclusion

In summary, the ON Semiconductor NCP5810DMUTXG stands out as a compact and efficient solution for portable electronics requiring high-quality audio. Its combination of high efficiency, low power consumption, and superior audio fidelity makes it a top choice for designers looking to enhance the audio experience in their products. With its advanced features and protections, the NCP5810DMUTXG ensures reliable performance in a wide array of audio applications.
