The ON Semiconductor NCP4306AAAZZZAMN1TBG is a state-of-the-art secondary side synchronous rectification driver designed to enhance the efficiency of power conversion in modern electronic systems. This advanced component is specifically tailored for use in switch mode power supplies (SMPS), which are commonly found in a wide range of applications including but not limited to consumer electronics, computing devices, and industrial equipment.

Key Features

• High Efficiency: The NCP4306AAAZZZAMN1TBG is engineered to improve efficiency by accurately driving the synchronous rectification MOSFETs on the secondary side of flyback converters.
• Voltage Mode Control: This product supports voltage mode control with secondary side regulation, ensuring precise output voltage regulation.
• Adaptive Gate Drive: The adaptive non-overlap gate drive helps to minimize body diode conduction losses in the synchronous rectifier MOSFETs.
• Advanced Protection Features: The device includes various protection features such as overvoltage protection (OVP), undervoltage lockout (UVLO), and maximum on-time protection, safeguarding the power supply and the end application from potential damage.

Applications

The versatility of the NCP4306AAAZZZAMN1TBG allows it to be integrated into a broad spectrum of power conversion systems. It is particularly well-suited for the following applications:

• Desktop and laptop power adapters
• Televisions and monitors
• Networking power supplies
• Industrial power systems

Technical Specifications

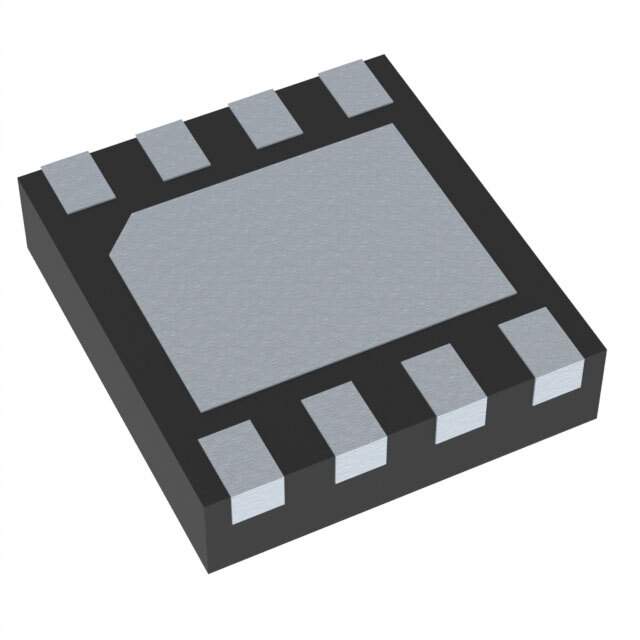

ON Semiconductor's NCP4306AAAZZZAMN1TBG operates over a wide temperature range and comes in a compact, low-profile package. It is fully compliant with industry standards, ensuring reliability and performance in demanding environments.

Environmental Compliance

The NCP4306AAAZZZAMN1TBG is designed with environmental consciousness in mind. It meets various international standards for environmental compliance, making it a suitable choice for eco-friendly designs seeking to reduce carbon footprint without compromising on performance.
