Products specifications

Category Integrated Circuits (ICs) - Power Management (PMIC) - PFC (Power Factor Correction)
Mfr onsemi
Series -
Package Tape & Reel
Product Status Active
Mode Continuous Conduction (CCM)
Frequency - Switching 65kHz
Current - Startup 1 mA
Voltage - Supply 9.5V ~ 35V
Temperature Range - Operating -40°C ~ 125°C (TJ)
Mounting Type Surface Mount

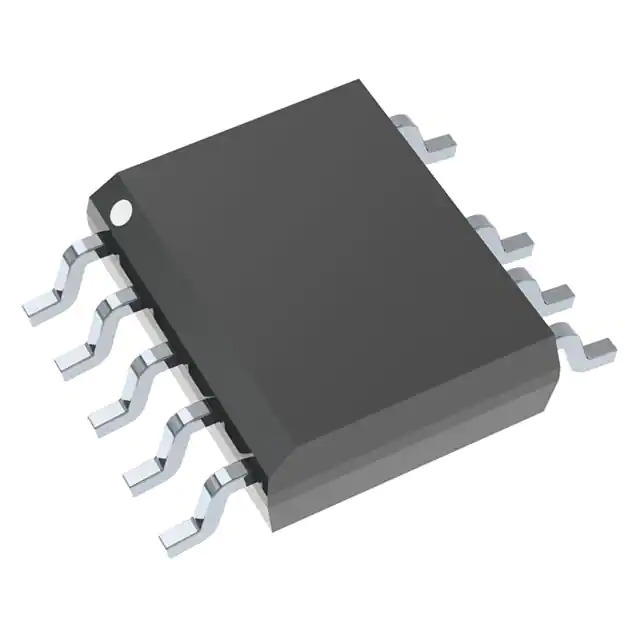

Package / Case 10-SOP (0.154", 3.90mm Width), 9 Leads
Supplier Device Package 9-SOIC
Base Product Number NCP1618
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1372597-NCP1618BDR2G
Ultra Librarian 3D Model Ultra Librarian NCP1618BDR2G CAD Model

Description

ON Semiconductor NCP1618BDR2G Power Factor Correction Controller

The NCP1618BDR2G is a high-performance, critical conduction mode (CrM) power factor correction (PFC) controller designed by ON Semiconductor. This advanced integrated circuit (IC) is engineered to deliver efficient power regulation for a wide range of applications, including but not limited to power supplies for televisions, desktop computers, servers, and industrial systems. With its state-of-the-art features, the NCP1618BDR2G is an ideal solution for systems that require compliance with regulatory standards for power factor and harmonic content.

Key Features

  • High-Efficiency CrM Operation: The NCP1618BDR2G operates in critical conduction mode, which minimizes switching losses and improves overall efficiency, particularly beneficial in light load conditions.
  • Adjustable Output Overvoltage Protection: This feature safeguards the power supply and the load by promptly shutting down the PFC stage if an overvoltage condition is detected.
  • Low Startup Current: The device boasts a low startup current, which reduces stress on the system during power-up, enhancing the reliability and lifespan of the power supply.
  • Brownout Protection: In the event of a brownout, the NCP1618BDR2G automatically reduces the power delivered to prevent system shutdown, thereby maintaining performance during dips in input voltage.
  • Frequency Limitation: The IC includes a frequency limitation feature to prevent operation at undesirably high frequencies, thus ensuring reliable performance and compliance with EMI standards.

Applications

The versatility of the NCP1618BDR2G makes it suitable for a variety of applications that demand high power factor and low THD (Total Harmonic Distortion). It is commonly used in:

  • AC-DC Adapters
  • Power Supplies for Flat Panel Televisions
  • Desktop and Server Power Supplies
  • Industrial Power Systems

Package and Availability

The NCP1618BDR2G is offered in a compact SOIC-8 package, providing a space-saving solution for modern electronic systems. ON Semiconductor's commitment to quality and environmental sustainability is evident in this RoHS-compliant product, which is available for order to meet the demands of both high-volume production and prototype development.

With its advanced features and robust design, the NCP1618BDR2G from ON Semiconductor is a smart choice for designers looking to enhance power factor correction in their next-generation electronic systems.
