ON Semiconductor NB7L585MNG: High-Performance Clock Buffer

The ON Semiconductor NB7L585MNG is a state-of-the-art clock buffer designed to deliver exceptional performance in a wide range of applications. This high-speed, 2.5 V / 3.3 V Differential 2:1 Mux Input to 1:6 CML Clock / Data Fanout Buffer is specifically engineered to address the stringent requirements of high-speed data communication systems and advanced computing architectures.

With its differential 2:1 multiplexer input to six differential CML outputs, the NB7L585MNG offers the flexibility needed for complex timing architectures. The device can accept two differential input signals, which can be selected through the mux control input, and distribute the chosen signal to six outputs, providing a one-to-six fanout buffer solution. This feature makes it an ideal choice for applications requiring multiple copies of a clock or data signal.

The NB7L585MNG operates over the industrial temperature range of -40°C to 85°C, ensuring reliable performance under varying environmental conditions. Its CML outputs feature reduced swing for lower power consumption and reduced EMI, which is critical in high-speed environments. Additionally, the device is equipped with an on-chip 75 kΩ input termination resistors to both differential inputs, which minimizes external components and simplifies PCB layout.

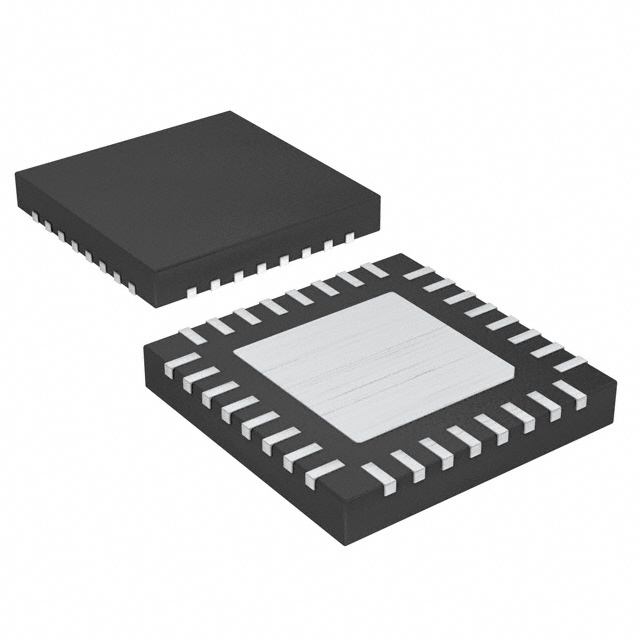

This clock buffer is housed in a compact 32-pin QFN package, making it suitable for space-constrained applications. The NB7L585MNG also supports a maximum frequency of 7 GHz/7 Gb/s, providing the high-speed operation required for advanced systems. Furthermore, the device has a fully differential circuit architecture that offers excellent jitter and skew performance, which is vital for maintaining signal integrity in high-speed data paths.

In summary, the ON Semiconductor NB7L585MNG is a versatile and high-performance clock buffer that serves as an essential component for designers looking to optimize their high-speed signal distribution networks. Its robust feature set and reliable performance under industrial conditions make it a top choice for applications in networking, telecommunications, and high-performance computing systems.
