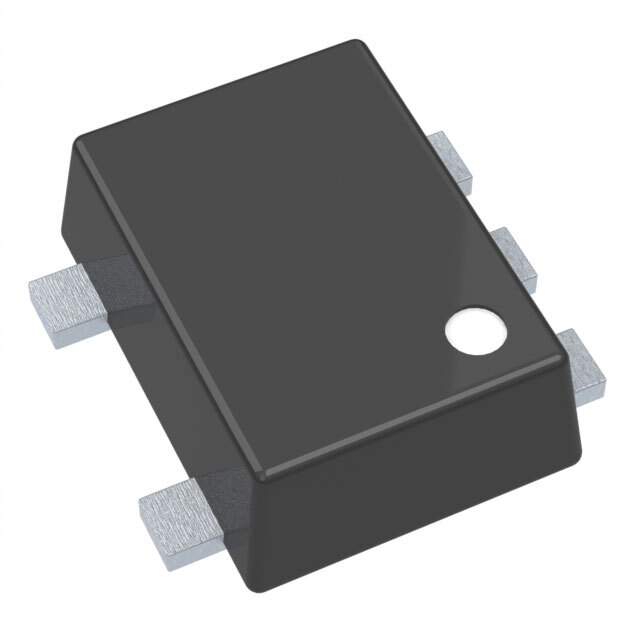

The MC74VHC1GT126P5T5G is a high-performance, single non-inverting buffer fabricated with silicon gate CMOS technology. Designed by ON Semiconductor, this device is intended to deliver a high-speed interface between two different voltage domains with its 5V tolerant inputs and outputs. It's a critical component for modern digital systems that require logic-level shifting or signal isolation.

Key Features

• High-Speed CMOS Technology: The device is built using advanced CMOS technology, which ensures low power consumption while maintaining high switching speeds.
• 5V Tolerant Inputs: This buffer can interface with 5V signals, making it compatible with both 3.3V and 5V systems. This feature is essential for mixed-voltage applications.
• Power-Down High Impedance Inputs and Outputs: When powered down, the inputs and outputs transition to a high impedance state, reducing power consumption and preventing unintended signal propagation.
• Non-Inverting Output: It provides a true representation of the input signal at the output, ensuring signal integrity is maintained.
• Low Propagation Delay: The buffer is designed for high-speed operation, which is reflected in its low propagation delay times.

Applications

The MC74VHC1GT126P5T5G is versatile and can be used in a variety of applications, including:

• Logic level shifting for interfacing different voltage systems.
• Signal buffering to prevent loading effects.
• Line driving where high output current is required.
• Bus isolation in multi-master systems to prevent data corruption.

Product Specifications

Overall, the MC74VHC1GT126P5T5G from ON Semiconductor is a reliable and efficient solution for applications requiring voltage translation or signal buffering with high-speed performance and low power consumption.
