Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr onsemi
Package Tape & Reel (TR)
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 630 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 30 µA @ 60 V
Mounting SMD (SMT)

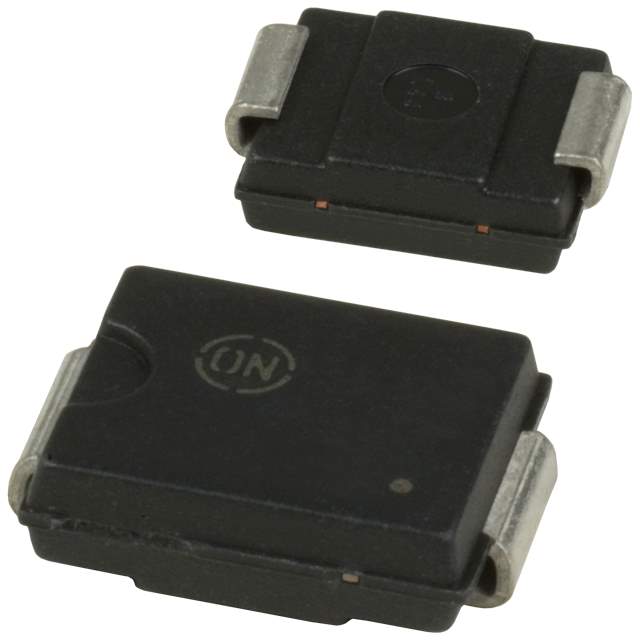

Package / Case DO-214AB, SMC
Supplier Device Package SMC
Operating Temperature - Junction -65°C ~ 175°C
Base Product Number MBRS360
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 2156-MBRS360PT3G-ONTR,ONSONSMBRS360PT3G
Standard Package 2,500
Win Source Part Number 1192552-MBRS360PT3G
Ultra Librarian 3D Model Ultra Librarian MBRS360PT3G CAD Model

Description

The MBRS360PT3G is a robust Schottky barrier rectifier designed and manufactured by ON Semiconductor, a leading provider of semiconductor-based solutions. This high-performance rectifier is engineered to offer low forward voltage drop, high surge capability, and a high degree of reliability under extreme operating conditions, making it an ideal choice for high-efficiency power supply applications.

Key Features

  • Low Power Loss: The MBRS360PT3G features a low forward voltage drop, which translates into reduced power loss and improved efficiency in your electrical circuits.
  • High Surge Capacity: It is capable of handling high surge currents, ensuring protection against unexpected voltage spikes and enhancing the durability of the end application.
  • High Frequency Operation: With its Schottky barrier design, this rectifier is optimized for high-frequency operation, making it suitable for switch-mode power supplies and other high-frequency rectification processes.
  • Temperature Resistant: The device can operate at junction temperatures ranging from -55°C to +150°C, providing stable performance across a wide temperature spectrum.
  • Surface Mount Package: The MBRS360PT3G comes in a compact surface-mount package, which allows for efficient assembly and space-saving PCB design.
  • Environmentally Friendly: This product is Pb-free, halogen-free, and RoHS compliant, reflecting ON Semiconductor's commitment to environmental sustainability.

Applications

The MBRS360PT3G is versatile and can be used in various applications, including:

  • Switch-mode power supplies (SMPS)
  • DC-to-DC converters
  • Free-wheeling diodes
  • Polarity protection devices
  • Low voltage, high frequency inverters

Technical Specifications

  • Voltage - Max. Recurrent Peak Reverse Voltage (Vrrm): 60V
  • Current - Average Rectified (Io): 3A
  • Voltage - Forward (Vf) (Max) @ If: 0.71V @ 3A
  • Current - Non Rep. Surge Peak (Ippm): 100A
  • Package / Case: SMB (DO-214AA)

The MBRS360PT3G Schottky barrier rectifier is a testament to ON Semiconductor's dedication to providing high-quality, reliable components for advanced electronic applications. Its combination of efficiency, thermal resilience, and surge capability make it an excellent choice for designers looking to enhance their power management systems.
