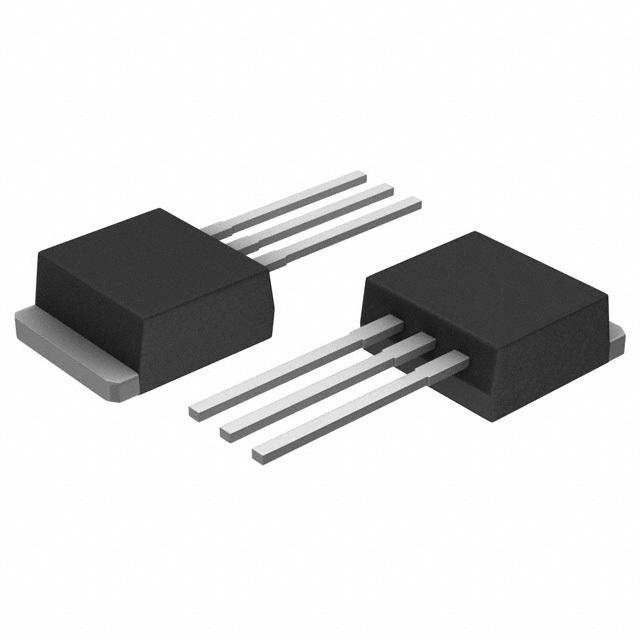

ON Semiconductor MBRB41H100CT-1G Schottky Diode

The MBRB41H100CT-1G from ON Semiconductor is a highly efficient, robust Schottky barrier rectifier designed for high voltage applications. This power diode is a critical component in a wide range of electronic devices, providing low forward voltage drop and significant power loss reduction, which makes it ideal for high-frequency inverters, free-wheeling, and polarity protection applications.

With its advanced silicon technology, the MBRB41H100CT-1G offers a peak repetitive reverse voltage (Vrrm) of 100V and a maximum average forward rectified current (Io) of 40A, making it suitable for high current operations. Its dual diode configuration in a single package allows for a compact design with common cathode connection, which simplifies PCB layout and reduces component count in circuits.

Key Features:

• High Current Capability: The device can handle a forward current of 40A, ensuring it can support high current applications.
• Low Forward Voltage Drop: The low forward voltage drop (Vf) minimizes power loss and improves efficiency, which is especially beneficial in low voltage, high current scenarios.
• High Surge Capacity: It has the ability to withstand high surge currents, which is critical for applications that may experience sudden surges.
• Switching Speed: The Schottky diode is designed for fast switching, with a minimal reverse recovery time, making it suitable for high-frequency operations.
• Thermal Performance: The device is packaged in a D2PAK, which offers excellent thermal performance and a compact footprint.
• RoHS Compliant: The MBRB41H100CT-1G is compliant with the Restriction of Hazardous Substances (RoHS) directive, making it environmentally friendly.

Whether you're designing power supply units, DC-DC converters, or looking to enhance the efficiency of your automotive applications, the MBRB41H100CT-1G Schottky diode is a reliable and high-performing choice. Its ruggedness, coupled with ON Semiconductor's reputation for quality, ensures long-term reliability and performance in even the most demanding electrical environments.

Overall, the MBRB41H100CT-1G is a testament to ON Semiconductor's commitment to providing innovative, energy-saving semiconductors that meet the evolving needs of the electronics industry.
