Products specifications

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Max) @ If 800mV @ 40A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 1mA @ 45V
Operating Temperature - Junction -65°C to 150°C
Mounting Through Hole
Case / Package TO-247AD (TO-3P)
Win Source Part Number 316520-MBR4045PT
Popularity Medium
Supply and Demand Status Balance
Quantity per package 30
Ultra Librarian 3D Model Ultra Librarian MBR4045PT CAD Model

Description

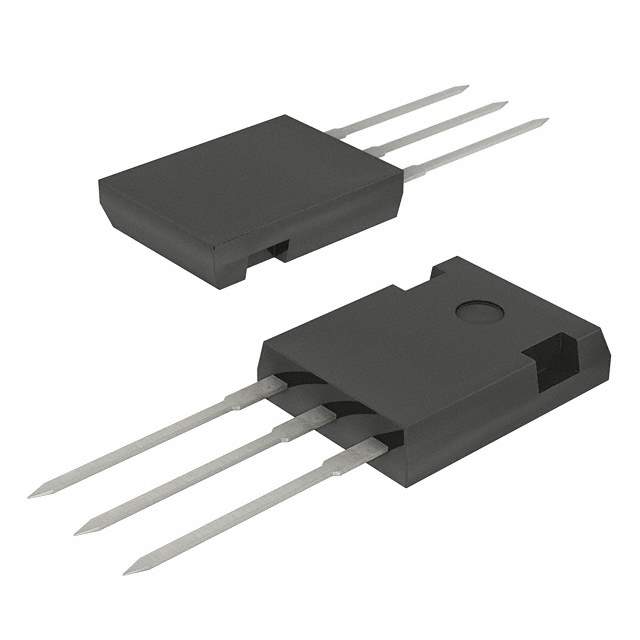

The MBR4045PT is a robust and efficient Schottky rectifier diode module designed and manufactured by ON Semiconductor, a leading provider of semiconductor-based solutions. This power rectifier is specifically engineered for applications that demand high surge capability and low forward voltage drop.

Key Features

  • Dual Schottky Barrier Rectifiers: The MBR4045PT consists of two Schottky diodes in a single package, allowing for efficient use in both single and dual configurations.
  • High Surge Capability: This rectifier is capable of handling high surge currents, making it suitable for applications that experience frequent power surges.
  • Low Forward Voltage Drop: The low forward voltage drop feature ensures that the device operates with high efficiency, reducing thermal stress and improving system performance.
  • High Junction Temperature: With an operating junction temperature range of -65°C to 150°C, the MBR4045PT can reliably perform in extreme temperature environments.
  • Isolated TO-247 Package: The TO-247 package provides electrical isolation to the heatsink without the need for additional insulating hardware.

Applications

The MBR4045PT is ideally suited for a variety of applications, including:

  • Power supply units (PSUs)
  • DC-DC converters
  • Free-wheeling diodes in motor control circuits
  • Power inverters
  • Automotive applications requiring high reliability

Technical Specifications

Parameter Value Peak Repetitive Reverse Voltage (V<sub>RRM) 45V Average Rectified Forward Current (I<sub>F(AV)) 40A Peak Surge Current (I<sub>FSM) 400A Forward Voltage Drop (V<sub>F) 0.83V Operating Junction Temperature (T<sub>J) -65°C to 150°C

With its combination of ruggedness, high efficiency, and thermal performance, the MBR4045PT from ON Semiconductor is an excellent choice for designers looking to improve the reliability and efficiency of their power management systems.
