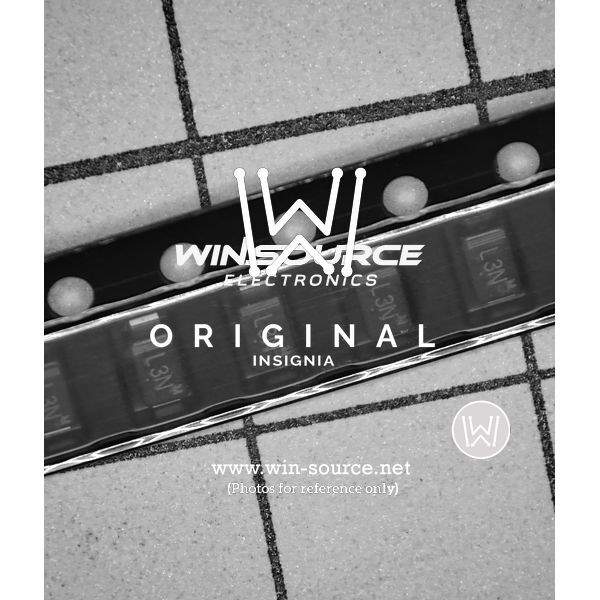

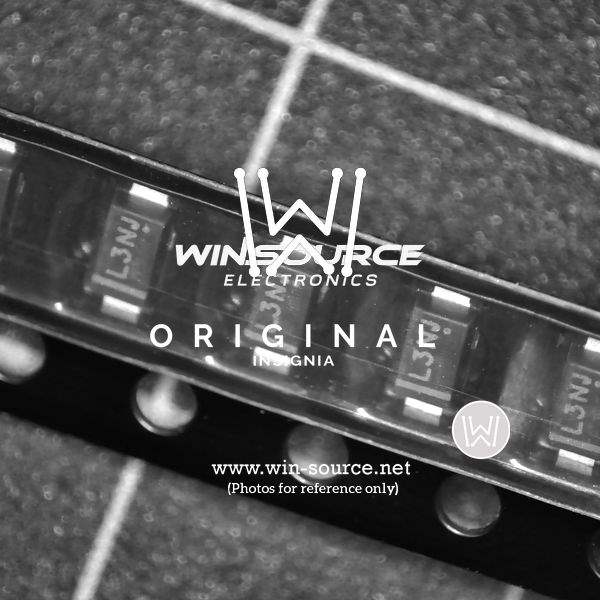

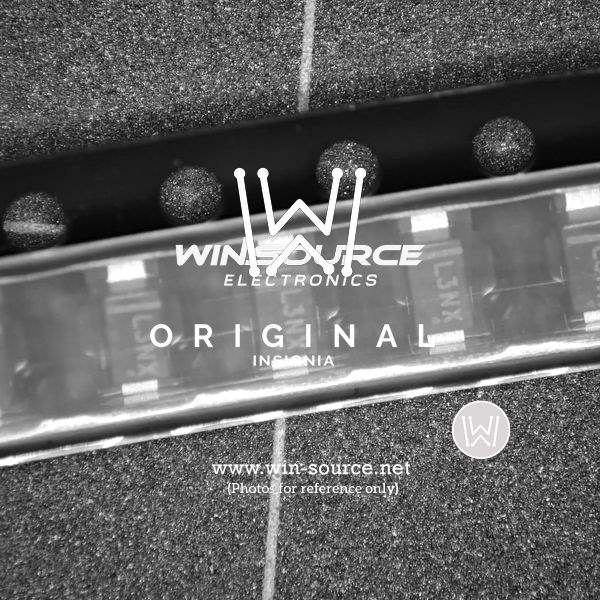

Introducing the MBR230LSFT1G Schottky Barrier Rectifier from ON Semiconductor

The MBR230LSFT1G is a robust and efficient Schottky Barrier Rectifier designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This surface-mount diode is engineered to offer low forward voltage drop and significant power savings, making it an ideal component for high-density circuit designs.

Key Features and Benefits

• Low Power Loss: The MBR230LSFT1G boasts a low forward voltage drop, reducing power loss and improving efficiency, which is critical for energy-sensitive applications.
• High Surge Capability: This diode is capable of withstanding high surge currents, offering reliable performance under stress and enhancing circuit protection.
• Compact Footprint: The small package size allows for a more compact board layout, enabling designers to reduce the overall size of their electronic assemblies.
• High-Temperature Operation: With an operating junction temperature range of -55°C to +150°C, the MBR230LSFT1G is suitable for high-temperature environments, ensuring stability and longevity.
• Pb-Free Design: The device is lead-free, making it compliant with current environmental regulations and suitable for use in green products.

Applications

The MBR230LSFT1G is versatile and can be used in a wide range of applications, including:

• Power supply units
• DC-DC converters
• Automotive applications
• Freewheeling diodes
• Reverse battery protection
• Portable devices

Technical Specifications

• Voltage - DC Reverse (Vr) (Max): 30V
• Current - Average Rectified (Io): 2A
• Voltage - Forward (Vf) (Max) @ If: 0.57V @ 2A
• Power Dissipation (Max): 1.25W
• Package / Case: SOD-123FL

ON Semiconductor's MBR230LSFT1G is a testament to the company's commitment to providing high-performance, reliable components for today's demanding electronic applications. Whether used in power management, automotive, or portable devices, this Schottky Barrier Rectifier is an excellent choice for designers looking to enhance efficiency and reduce space in their circuits.

For more detailed information, including datasheets and purchasing options, please visit the ON Semiconductor website or contact your local authorized distributor.
