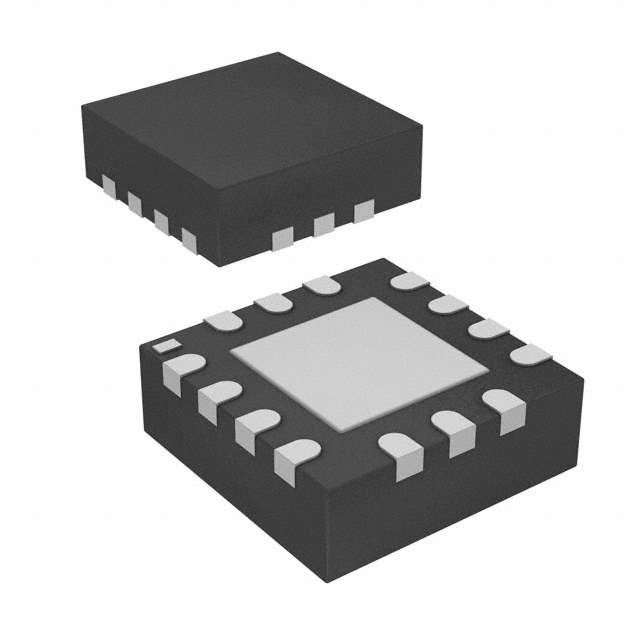

ON Semiconductor FUSB302TVMPX USB Type-C Controller

The FUSB302TVMPX from ON Semiconductor is a feature-rich USB Type-C controller with USB Power Delivery (PD) capabilities, designed to facilitate the development of next-generation USB Type-C ports that are capable of delivering data, video, and power over a single connector. This compact and versatile IC is ideal for a wide range of applications, including smartphones, tablets, laptops, and other consumer electronics that demand a high level of integration and performance.

Key Features:

• USB Type-C and Power Delivery Support: The FUSB302TVMPX is fully compliant with the USB Type-C standard and the USB Power Delivery 2.0 specification, enabling it to manage up to 100W of power and support various data and alternate modes.
• Integrated VBUS Power Switch: This controller includes an integrated VBUS power switch, providing a safe and efficient way to connect and disconnect power to the USB port.
• Programmable Power Supply: The device features a programmable power supply (PPS) that allows for fine-grained control over the power delivery process, enhancing the charging experience for end-users.
• BC1.2 Charging Detection: It supports Battery Charging Specification 1.2, enabling faster charging of connected devices and ensuring compatibility with legacy USB charging protocols.
• Multiple GPIOs: Multiple General Purpose Input/Output (GPIO) pins provide flexibility for additional control and customization of USB Type-C features.

Advanced Protection and Safety:

The FUSB302TVMPX incorporates a range of protection features to ensure the safety and longevity of consumer devices. These include over-voltage protection, over-current protection, and thermal shutdown mechanisms. These safety features help protect both the controller and connected devices from potential damage due to electrical faults.

Compact and Energy Efficient:

With its small footprint, the FUSB302TVMPX is designed to fit into space-constrained applications while maintaining energy efficiency. Its low-power design minimizes power consumption, making it suitable for battery-powered devices where power conservation is crucial.

Overall, the FUSB302TVMPX from ON Semiconductor is a highly integrated USB Type-C controller that offers robust support for USB Power Delivery, making it an excellent choice for manufacturers looking to incorporate the latest USB Type-C technology into their products.
