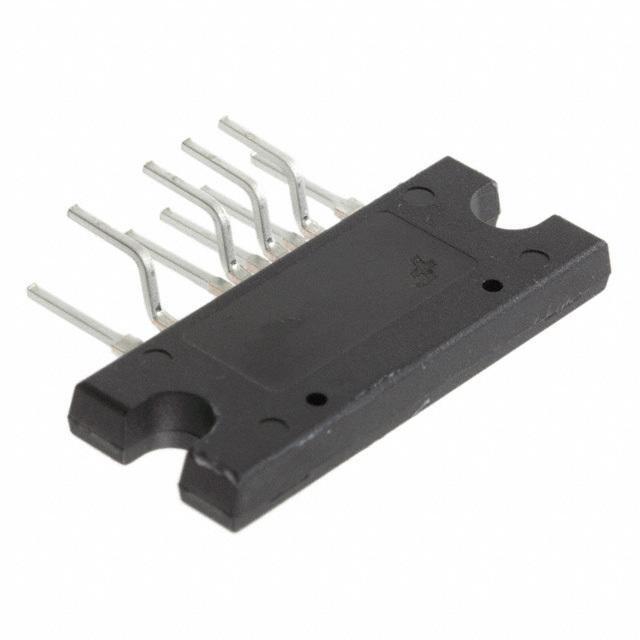

Overview of ON Semiconductor's FSFR1600 Power Switch

The FSFR1600 is a highly integrated power switch designed by ON Semiconductor for high-performance offline SMPS (Switched-Mode Power Supplies) with minimal external components. This innovative component is specifically tailored for half-bridge resonant converters, offering an efficient solution for applications requiring a high level of reliability and efficiency. The FSFR1600 combines power MOSFETs, an advanced control IC, and a variety of protection features into a compact package, simplifying design and reducing overall system cost.

Key Features

• High-Performance Topology: The FSFR1600 supports the LLC resonant converter topology, which provides zero-voltage switching (ZVS) and reduced switching losses, enhancing overall system efficiency.
• Integrated Power MOSFETs: The inclusion of power MOSFETs within the package reduces the part count and simplifies the PCB layout, leading to a more compact and reliable design.
• Advanced Control IC: The built-in control IC ensures optimal operation of the power switch, with features such as frequency modulation for improved EMI performance and adjustable dead time for better efficiency.
• Burst Mode Operation: For improved efficiency at light loads, the FSFR1600 offers a burst mode operation, significantly reducing power consumption when full power is not required.

Protection Features

• Over-Voltage Protection (OVP): The FSFR1600 automatically shuts down the operation if the output voltage exceeds a predefined threshold, ensuring the safety of the power supply and the load.
• Overload Protection (OLP): In the event of an overload condition, the device enters auto-restart mode, protecting both the power supply and the connected devices.
• Abnormal Over-Current Protection (AOCP): This feature provides an extra layer of security by detecting and responding to non-typical current spikes.
• Brown-Out Protection: The FSFR1600 senses undervoltage conditions, ensuring stable operation during power fluctuations.

Applications

The FSFR1600 is well-suited for a wide range of applications where high efficiency and reliability are paramount. It is commonly used in power supplies for flat-panel televisions, desktop computers, servers, and telecom equipment. Its robust feature set and compact design also make it an excellent choice for adapters, chargers, and other consumer electronics requiring efficient power conversion.

As a testament to ON Semiconductor's commitment to energy-efficient innovations, the FSFR1600 stands as a versatile and powerful solution for modern power supply designs.
