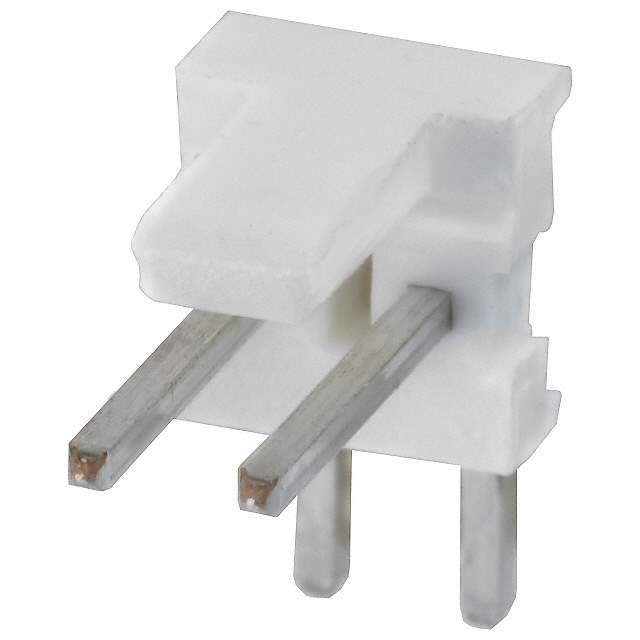

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series MTA-100
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Insulation Height 0.225" (5.72mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250VAC
Applications General Purpose
Base Product Number 640457
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names A1926,-640457-2-SI,6404572,2266-640457-2
Standard Package 1
Win Source Part Number 990270-640457-2
Ultra Librarian 3D Model Ultra Librarian 640457-2 CAD Model

Description

The 990270-640457-2 is a 2-position male pin header connector from the MTA-100 series.

  • Series: MTA-100
  • Pitch: 0.100" (2.54mm)
  • Application: Board to Cable/Wire
  • Contact Length: 0.295" (7.49mm)
  • Post Length: 0.140" (3.56mm)
  • Contact Shape: Square
  • Mounting Style: Through-Hole, Right-Angle
  • Voltage Rating: 250VAC
  • Operating Temperature: -55°C to 105°C
  • Application: General-Purpose
