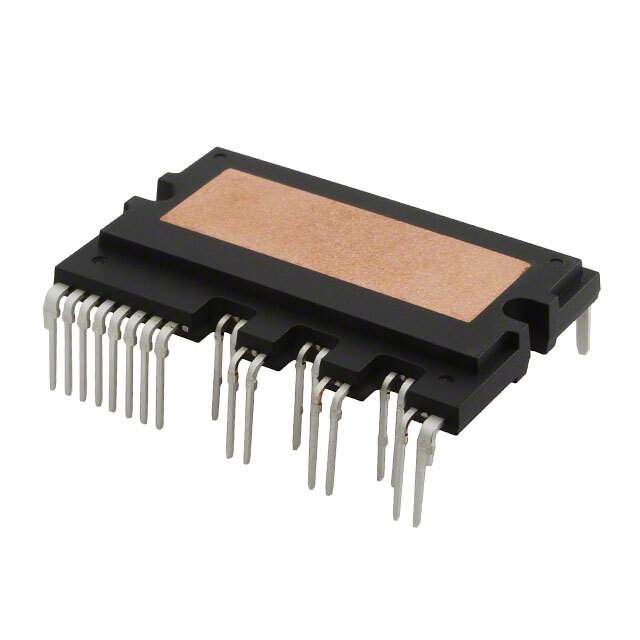

ON Semiconductor FSBB15CH60B Smart Power Module

The ON Semiconductor FSBB15CH60B is a cutting-edge Smart Power Module (SPM) that has been meticulously engineered to deliver high-efficiency and reliable performance for a wide range of applications. This module is a perfect solution for driving three-phase brushless DC motors, which are commonly used in industrial drives, air conditioners, washing machines, fans, and other automated systems requiring precise motor control.

At the heart of the FSBB15CH60B module is ON Semiconductor's proprietary IGBT technology, which provides an optimal balance between low conduction losses and high switching speed. This results in improved energy efficiency, reduced heat generation, and enhanced overall system reliability. The module is rated for a maximum current of 15A and a broad voltage range of up to 600V, making it suitable for various power applications.

The FSBB15CH60B module integrates multiple components within a single package, including six IGBTs, six fast recovery diodes, a thermistor for temperature sensing, and a built-in HVIC (High Voltage Integrated Circuit). The HVIC ensures gate driving capability and includes under-voltage lockout protection, which safeguards the module against insufficient power supply conditions.

Designed with a compact form factor, the FSBB15CH60B provides a space-saving solution that simplifies the design and manufacturing process of motor control systems. Its easy-to-mount package also ensures quick and simple installation, reducing overall time-to-market for the end products.

Additional features of the FSBB15CH60B include overcurrent protection, which helps to prevent damage to the module from unexpected high current events, and fault reporting, which provides diagnostic feedback for system monitoring and maintenance. The module's rugged design and built-in safety features make it an ideal choice for applications that demand high reliability and long service life.

In summary, the ON Semiconductor FSBB15CH60B Smart Power Module represents a high-performance, integrated solution for advanced motor control applications. Its efficiency, robustness, and feature-rich design make it a valuable component for engineers looking to optimize their motor control systems.
