The ON Semiconductor FSB50650B is a highly integrated, compact smart power module that embodies a cutting-edge solution for driving three-phase brushless DC motors. Designed for optimal efficiency and reliability, the FSB50650B is part of ON Semiconductor's Motion SPM® 45 series, which is renowned for its innovative approach to power management in motor drive applications.

Key Features

• Advanced IGBT Technology: Utilizing the latest Insulated Gate Bipolar Transistor (IGBT) technology, the FSB50650B delivers robust performance with low conduction and switching losses, making it ideal for energy-sensitive applications.
• Integrated Bootstrap Diodes: The module includes built-in high-speed bootstrap diodes for the high-side drive function, simplifying the PCB layout and enhancing system reliability.
• Under-Voltage Lockout: All high-side and low-side IGBT gate drivers are equipped with an under-voltage lockout function, ensuring the module operates safely within its voltage parameters.
• Over-Current Protection: The FSB50650B features an over-current protection circuit, which safeguards the module and the system it powers from unexpected current spikes.
• Optimized for High-Speed Operation: Engineered for high-speed switching applications, the module is capable of operating at frequencies suitable for a wide range of motor speeds.

Applications

The FSB50650B is an ideal choice for a variety of applications, including:

• Home appliances such as air conditioners, refrigerators, and washing machines
• Fan controllers for server and telecom power supplies
• Electric pumps and fans in automotive and industrial systems

Technical Specifications

The FSB50650B offers a comprehensive set of technical specifications designed to meet the rigorous demands of modern motor control systems:

• Voltage Rating: 600V
• Current Rating: The module can handle continuous current up to 3A, making it suitable for a variety of mid-power applications.

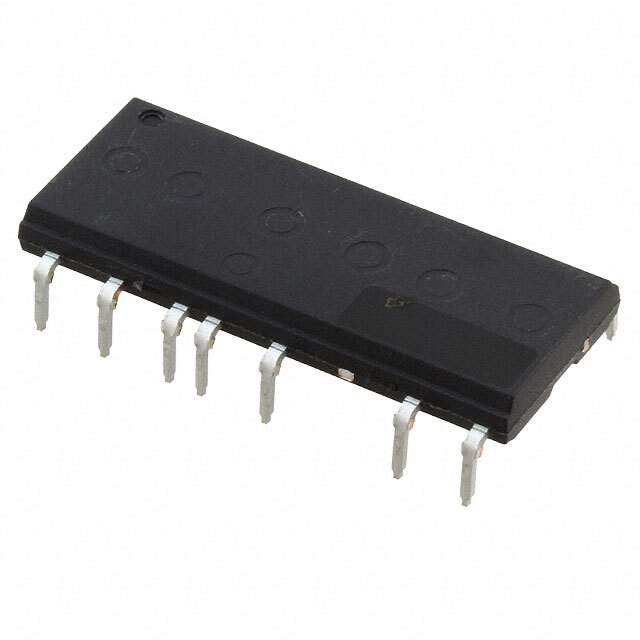

• Package: The module comes in a Mini-DIP package, which allows for a compact design and easy integration into various system form factors.

In conclusion, the FSB50650B from ON Semiconductor is a top-of-the-line smart power module that combines performance, efficiency, and reliability. Its integration of advanced features and protections ensures that it stands out as an exceptional solution for driving three-phase brushless DC motors in a multitude of applications.
