Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 25 Weeks
Features Audio Switch IC Channel US8
Manufacturer ON Semiconductor
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Surface Mount
Package 8-VFSOP (0.091", 2.30mm Width)
Case / Package US8
Family Name FSA2147
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number FSA2147K8XTR, FSA2147K8XCT, FSA2147K8XDKR
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 872304-FSA2147K8X
Ultra Librarian 3D Model Ultra Librarian FSA2147K8X CAD Model

Description

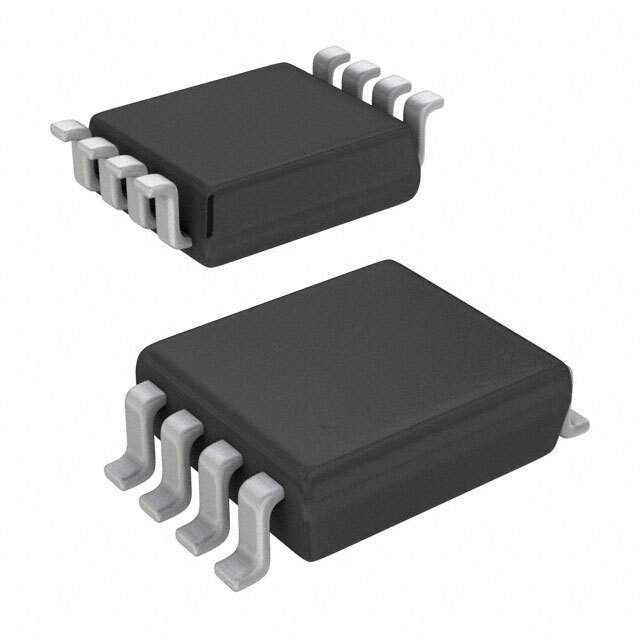

ON Semiconductor FSA2147K8X - High-Performance Analog Switch

The ON Semiconductor FSA2147K8X is a high-performance, single-pole double-throw (SPDT) analog switch that is a part of ON Semiconductor's extensive range of switch and multiplexer devices. This switch is designed for applications that require the routing of analog or digital signals. Its low on-resistance and low crosstalk make it an ideal choice for audio, video, and other signal switching applications.

Key Features

  • Low On-Resistance: The FSA2147K8X features a low on-resistance of typically 0.6 ohms, ensuring minimal signal loss and distortion when the switch is in the ON state.
  • Wide Voltage Range: It operates over a wide power supply range of 1.65V to 5.5V, making it versatile for both low and standard voltage applications.
  • Single Supply Operation: Its single supply operation simplifies design and reduces power supply requirements.
  • High Bandwidth: The device offers a high bandwidth that ensures signal integrity is maintained, especially important for high-speed data transmission.
  • Break-Before-Make Switching: This feature prevents signal disturbance by ensuring that no two switch paths are closed simultaneously.
  • ESD Protection: The switch is equipped with ESD protection circuitry on all pins to safeguard against electrostatic discharge events.
  • Lead-Free and RoHS Compliant: The FSA2147K8X is lead-free and complies with the RoHS directive, making it suitable for environmentally sensitive applications.

Applications

The versatility of the FSA2147K8X allows it to be used in a variety of applications, including:

  • Audio and video signal routing
  • Data communication systems
  • Signal gating
  • Portable electronic devices
  • Cellular phones
  • PDAs and notebooks

With its robust design and high-performance characteristics, the ON Semiconductor FSA2147K8X analog switch is a reliable and efficient solution for designers looking to manage signal routing with precision and ease.
