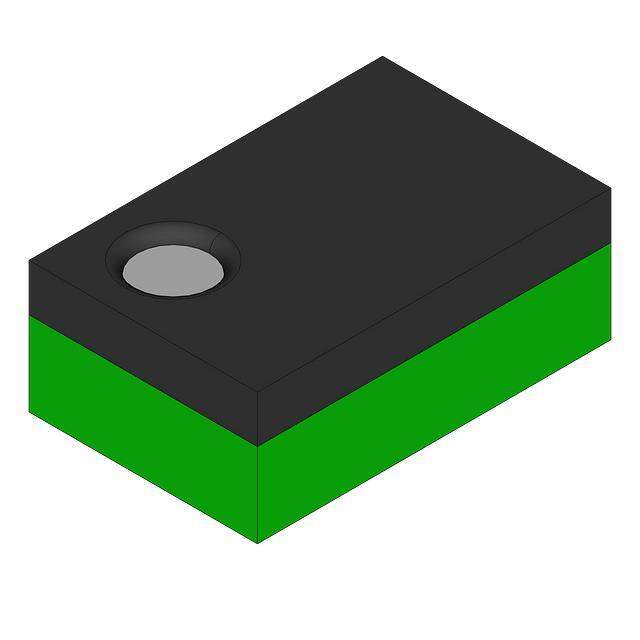

ON Semiconductor FPF2194 - Advanced Load Management Switch

The ON Semiconductor FPF2194 is an advanced load management switch designed to handle a variety of applications requiring power distribution and management. This integrated circuit offers a robust solution for systems that require controlled turn-on and shutdown behavior, with features that protect both the load and the power source.

Key Features:

• Current Limiting: The FPF2194 provides adjustable current limiting to protect the power source from overcurrent conditions. This feature ensures that the connected load does not draw more current than it is designed to handle.
• Thermal Shutdown: With an integrated thermal shutdown mechanism, the device prevents overheating by automatically turning off when the junction temperature exceeds the threshold limit.
• Under-Voltage Lockout (UVLO): The UVLO feature ensures that the switch remains off when the input voltage falls below a certain threshold, protecting the load from operating under potentially harmful low voltage conditions.
• Controlled Slew Rate: The FPF2194 offers a controlled slew rate for the output voltage, minimizing inrush current and reducing noise that could affect sensitive downstream circuitry.
• Reverse Current Blocking: This feature prevents current from flowing backward from the output to the input when the switch is turned off, offering additional protection for the power source.

Applications:

• Portable and battery-powered devices
• Smartphones and tablets
• Power distribution systems
• Overcurrent and short-circuit protection modules
• Hot-swap and plug-in modules

The FPF2194 from ON Semiconductor is a versatile and reliable component that is ideal for managing power in a wide range of electronic systems. Its advanced protection features and controlled operation make it an essential part of any power management solution, ensuring system stability and longevity.
