ON Semiconductor FOD8384 High-Speed MOSFET Drive Optocoupler

The ON Semiconductor FOD8384 is a robust, high-performance optocoupler designed specifically for driving high-speed MOSFETs in a variety of applications. This device is an essential component for engineers looking to create reliable and efficient designs in power management systems.

The FOD8384 incorporates a GaAlAs infrared LED optically coupled to an integrated high-speed photodetector. The photodetector consists of a photodiode and a high-speed transistor in a single chip, ensuring rapid response times and high isolation voltage. This feature provides excellent noise immunity and prevents unwanted voltage spikes from affecting the control side of the circuit, thereby safeguarding sensitive microcontrollers and other logic circuitry.

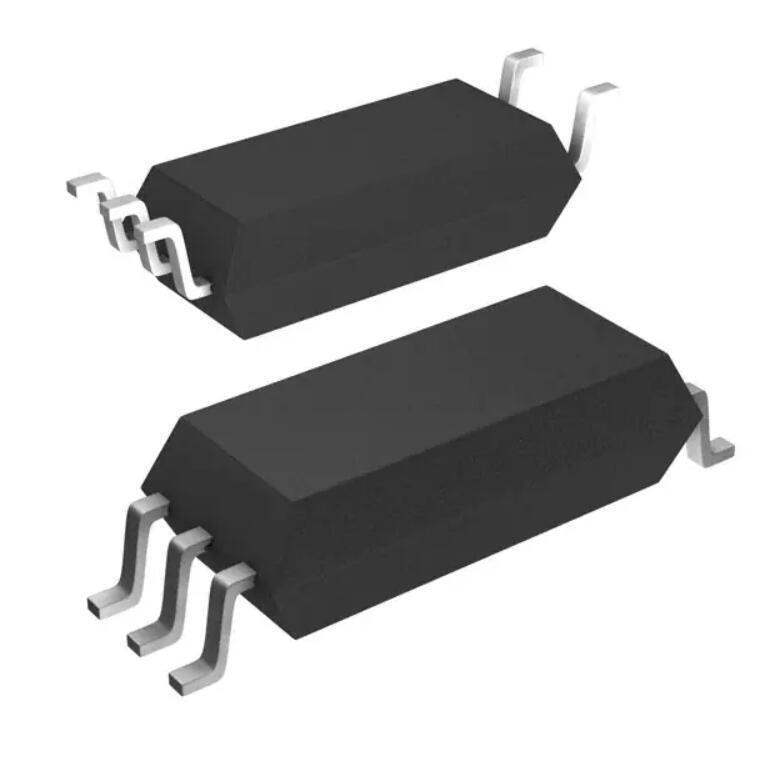

With an industry-standard SOP-5 package, the FOD8384 is not only space-efficient but also offers a high creepage and clearance distance, which is vital for maintaining electrical isolation in high-voltage applications. The device boasts an impressive common mode noise immunity of 35 kV/µs, making it highly resistant to transient voltage changes and ensuring stable operation in electrically noisy environments.

The FOD8384 is capable of delivering a peak output current of 2.5A, making it suitable for directly driving MOSFET gates. This high current drive along with a wide operating temperature range of -40°C to +100°C, allows it to be used in a diverse range of industrial and consumer applications, including switch-mode power supplies, motor controls, and inverter circuits.

Safety and reliability are paramount in the design of the FOD8384, which is why it comes with UL1577 and IEC60747-5-5 approvals for reinforced insulation. These certifications ensure that the product meets stringent safety standards, providing peace of mind for designers and end-users alike.

In summary, the ON Semiconductor FOD8384 is a high-speed MOSFET drive optocoupler that combines high isolation, fast switching speeds, and strong drive capabilities, making it an excellent choice for modern high-performance power conversion and control applications.
