ON Semiconductor FOD817BS Optocoupler

The FOD817BS is a robust optoelectronic device designed and manufactured by ON Semiconductor, a company renowned for its expertise in power and signal management. This particular product is part of the FOD817 series of optocouplers, also known as photocouplers or optical isolators, which serve as critical components in a wide range of electronic applications where electrical isolation is necessary.

The FOD817BS optocoupler consists of a gallium arsenide infrared emitting diode, which is optically coupled to a silicon phototransistor. The primary function of this device is to electrically isolate the input signal from the output, thereby protecting sensitive electronic components from high voltage spikes and surges. This isolation ensures that signal integrity is maintained while also safeguarding user safety by preventing electrical shocks.

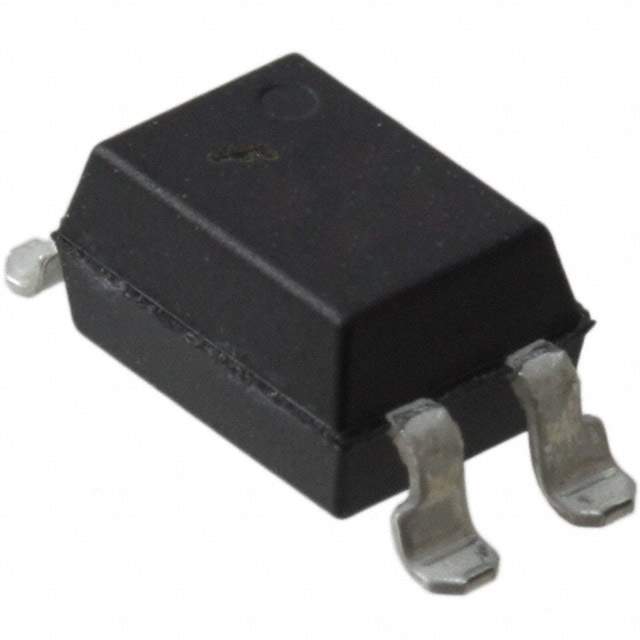

Encased in a compact 4-pin Small Outline package, the FOD817BS is designed for space-constrained applications. It boasts an impressive isolation voltage of 5000Vrms, which is a testament to its ability to withstand high transient voltages, making it an ideal choice for applications such as switching power supplies, computer peripherals, and industrial controls.

ON Semiconductor's FOD817BS features a current transfer ratio (CTR) range from 50% to 600%, which indicates the efficiency with which the input signal is converted to output. This wide range makes the FOD817BS versatile and adaptable to various driving circuit conditions. The operating temperature range of -55°C to +110°C ensures reliable performance across diverse environmental conditions.

For engineers and designers looking for an optocoupler that offers reliability, efficiency, and high isolation voltage, the FOD817BS from ON Semiconductor is an excellent choice. Its compliance with UL, CSA, VDE, and FIMKO safety standards further underscores its suitability for use in safety-critical applications, providing peace of mind in terms of both performance and regulatory conformity.

Whether you are designing a new circuit or seeking a replacement for an existing component, the FOD817BS optocoupler is a component that promises to deliver both performance and durability, encapsulating ON Semiconductor's commitment to quality and innovation.
