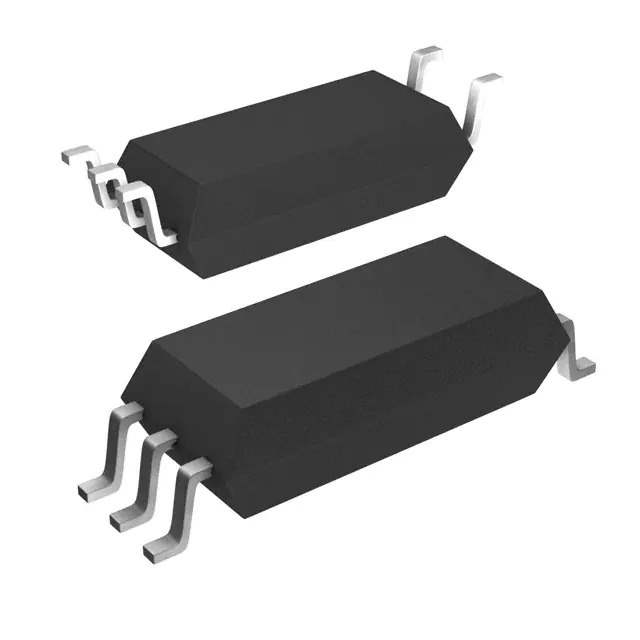

ON Semiconductor FOD8160V: High-Speed Logic Gate Optocoupler

The ON Semiconductor FOD8160V is a cutting-edge high-speed logic gate optocoupler that combines superior isolation capabilities with high-speed performance. This device is designed to meet the stringent demands of modern electronic systems, providing a reliable method for signal isolation while allowing for high-speed data transmission.

At the heart of the FOD8160V lies a high-speed LED that is optically coupled to an integrated high-gain photo detector. The detector consists of a photodiode and a high-speed transistor in a single package. This advanced design ensures excellent isolation between the input and output, minimizing the risk of electrical noise and signal distortion that can occur in electrically noisy environments or when switching high voltages.

The FOD8160V boasts an impressive data rate of 15 Mbps, making it an ideal choice for applications that require fast data transfer, such as digital communication systems, microprocessor system interfaces, and other data-intensive applications. The optocoupler's fast propagation delay and minimal pulse width distortion are key features that contribute to its high-speed capabilities.

With a wide supply voltage range from 3V to 5.5V, the FOD8160V is highly versatile and can be easily integrated into a variety of digital systems. The optocoupler also features a guaranteed performance from -40°C to +100°C, ensuring reliable operation across a broad range of temperature conditions.

Safety and compliance are paramount for ON Semiconductor, and the FOD8160V is no exception. It is safety approved with UL1577 recognized with 5000 Vrms for 1 minute and CSA and IEC/EN/DIN EN 60747-5-5 approved. This makes the FOD8160V not only a high-performance component but also one that meets rigorous safety standards, providing peace of mind for designers and engineers.

Overall, the ON Semiconductor FOD8160V is a superb choice for designers looking to incorporate a high-speed, reliable, and safe optocoupling solution into their electronic designs. Its combination of speed, isolation, and compliance with safety standards makes it a versatile and dependable component in a wide array of applications.
