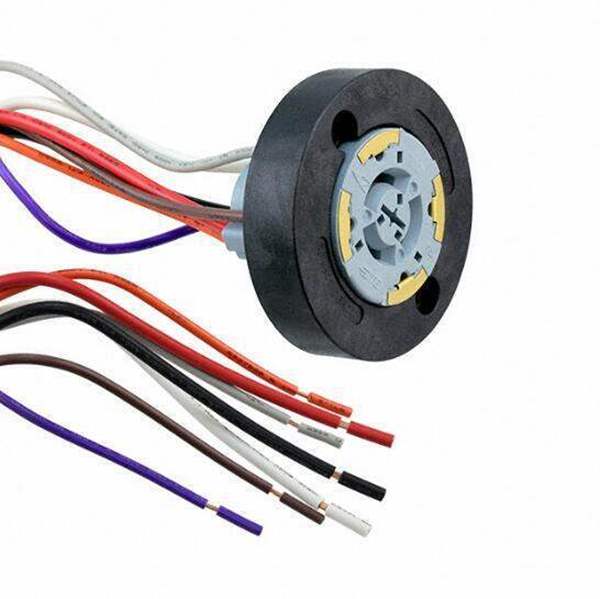

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Optoelectronics Optoelectronics Accessories
Package Bag
Product Status Active
Accessory Type Dimming Receptacle
For Use With/Related Products ANSI C136.41-2013
Win Source Part Number WS1207012-2213627-4
Ultra Librarian 3D Model Ultra Librarian 2213627-4 CAD Model

Description

TE Connectivity launches a new ANSI C136.41 compliant fully rotatable dimming receptacle which provide an electrical and mechanical interconnection between an ANSI C136.41-2013 photo control cell and luminaire. Ideal for outdoor commercial and utility lighting the ANSI C136.41 compliant dimming receptacle is available with two or four dimming contacts to support either 0-10 VDC dimming methods or Digital Addressable Lighting Interface (DALI), while providing a reliable power interconnect with three robust twist lock contacts.
