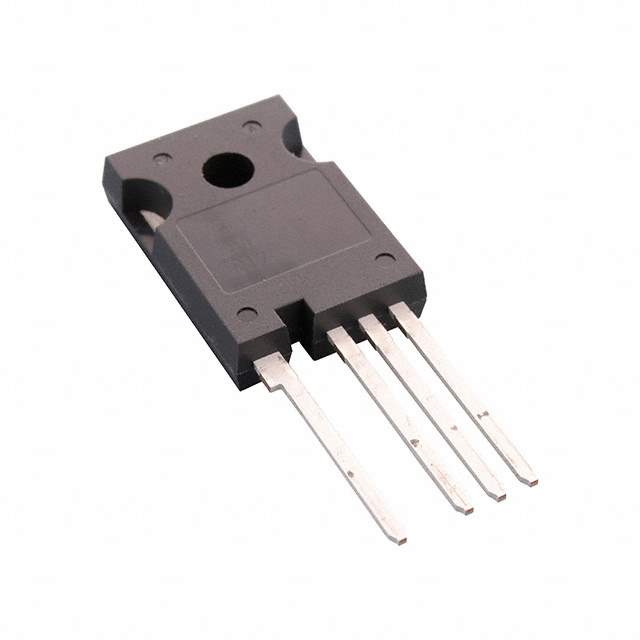

The FGH75T65SQDNL4 is a cutting-edge IGBT (Insulated Gate Bipolar Transistor) from ON Semiconductor, a leading manufacturer in the semiconductor industry. This high-performance transistor is designed to meet the demanding requirements of modern power electronics applications. It's well-suited for use in a wide range of applications, including inverters, converters, UPS systems, and motor drives.

Key Features

• High Efficiency: The FGH75T65SQDNL4 boasts low on-state voltage drop and minimal switching losses, leading to high efficiency in power conversion processes.
• Robust Design: Engineered for durability, this IGBT can withstand high stress and temperature conditions, ensuring reliable performance and a long operational life.
• High Current Rating: With a continuous collector current rating of 75A, this device can handle high power applications with ease.
• Fast Switching Speed: The device features fast switching characteristics, making it ideal for applications requiring high-speed operation.
• Low EMI: It is designed to minimize electromagnetic interference, ensuring stable operation in sensitive electronic environments.

Electrical Characteristics

• Collector-Emitter Voltage (Vce) - 650V
• Collector Current (Ic) - 75A
• Power Dissipation (Pd) - 340W
• Gate-Emitter Threshold Voltage (Vge(th)) - 5.0V
• Maximum Operating Temperature - +175°C

Applications

The FGH75T65SQDNL4 is versatile and can be used in various high-power applications. Its robustness and reliability make it particularly suitable for:

• Renewable energy systems such as solar inverters and wind turbines
• Industrial motor drives and controls
• Power supply units and UPS systems
• Electric vehicle (EV) charging stations
• Power factor correction circuits

ON Semiconductor's FGH75T65SQDNL4 is a testament to the company's commitment to providing high-quality, reliable components for the power electronics market. Its excellent performance and versatility make it a top choice for engineers and designers looking to enhance the efficiency and reliability of their power systems.
