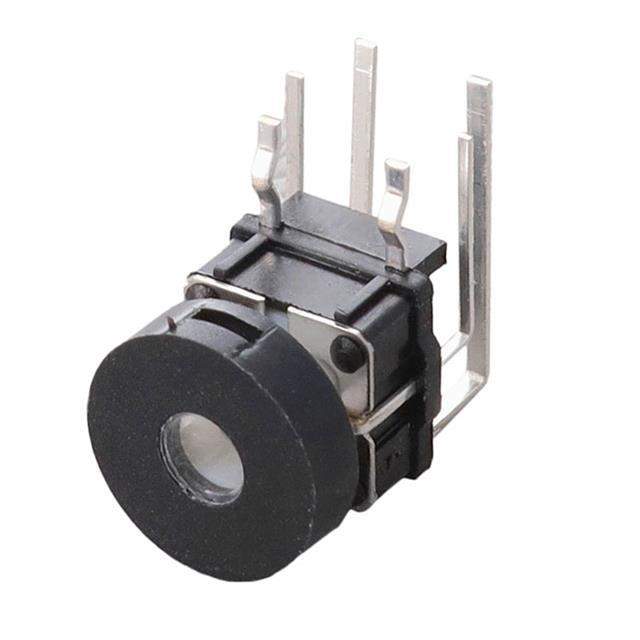

Same model may have multiple batches, images only for reference.

TL1260GQRBLK

Name: TL1260GQRBLK
Brand: E-Switch
SKU: 1351665
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TL1260GQRBLK
Manufacturer	E-Switch
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
Datasheet	TL1260GQRBLK Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	E-Switch
Series	TL1260
Package	Bulk
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Round Button
Mounting Type	Through Hole, Right Angle
Actuator Length, Right Angle	6.85mm
Actuator Orientation	Side Actuated
Termination Style	PC Pin
Outline	7.00mm x 6.80mm
Illumination	Illuminated
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.3 VDC
Operating Force	160gf
Features	Black Cap
Temperature Range - Operating	-20°C ~ 70°C
Actuator Material	Polybutylene Terephthalate (PBT)
Switch Travel	0.20mm
Mechanical Life	50,000 Cycles
Base Product Number	TL1260
Standard Package	500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	1351665-TL1260GQRBLK
Ultra Librarian 3D Model	Ultra Librarian TL1260GQRBLK CAD Model

Description

The TL1260 tactile switch from E-Switch is a SPST-NO switch with a round button actuator.

Switch Function: SPST-NO
Actuator Type: Round Button
Switch Travel: 0.20mm
Operating Force: 160gf
Actuation Direction: Side Actuated
Outline: 7.00mm x 6.80mm
Illumination: Green LED
Illumination Voltage: 2.3 VDC
Mechanical Life: 50,000 Cycles
Operating Temperature: -20°C ~ 70°C
Mounting Type: Through Hole
Termination Style: Right Angled
Contact Rating: 0.05A @ 12VDC
Packaging: Bulk
Ideal for: Use in various electronic devices
