The ON Semiconductor FDMF5071 is a highly integrated power stage module designed for high-efficiency, high-density power conversion applications. This advanced module combines the benefits of ON Semiconductor's leading-edge PowerTrench® MOSFET technology with a driver IC to deliver exceptional performance in a compact footprint. The FDMF5071 is ideal for synchronous buck or half-bridge power topologies commonly used in computing, telecom, and industrial power systems.
Key Features
- High-Efficiency Power Conversion: The PowerTrench MOSFET technology ensures low on-resistance (R<sub>DS(on)) and reduced switching losses, which translates to higher efficiency and better thermal performance.
- Integrated Driver: The module includes a high-speed driver IC that optimizes gate drive for reduced delay time, enhancing overall system performance and responsiveness.
- Compact Design: The FDMF5071's small form factor is ideal for space-constrained applications, allowing designers to minimize PCB size without compromising power delivery.
- Robust Thermal Performance: An exposed pad design facilitates excellent heat dissipation, enabling the module to operate reliably even under high power and temperature conditions.
- Easy Implementation: The module's pinout is optimized for simplified PCB layout, making it easier for engineers to design and implement into their systems.
Applications
The FDMF5071 is versatile and can be used in a variety of applications, including:
- Desktop and laptop computers
- Servers and storage systems
- Networking and telecommunications equipment
- Industrial power supplies
- Point-of-load (POL) modules
Technical Specifications
- Input Voltage Range: Optimized for 12V systems
- High Current Capability: Suitable for high current applications

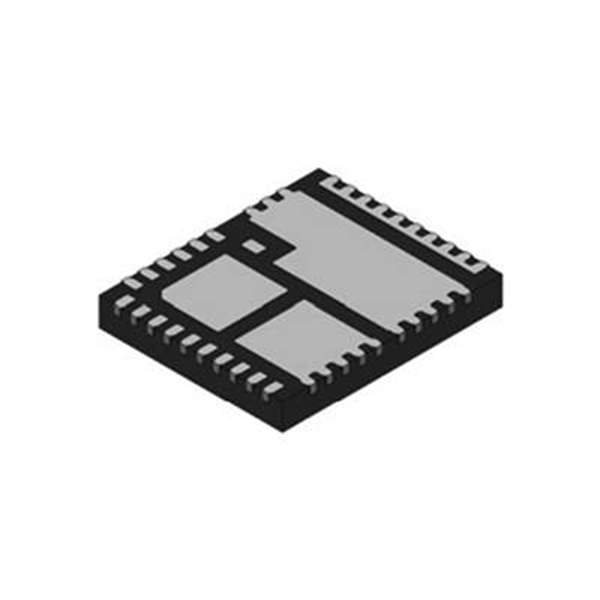

- Package: Compact 6x6mm PQFN with an exposed thermal pad
- Protection Features: Includes under-voltage lockout, thermal shutdown, and over-current protection
The ON Semiconductor FDMF5071 power stage module represents a blend of efficiency, integration, and performance, making it an excellent choice for designers looking to optimize their power management solutions.
