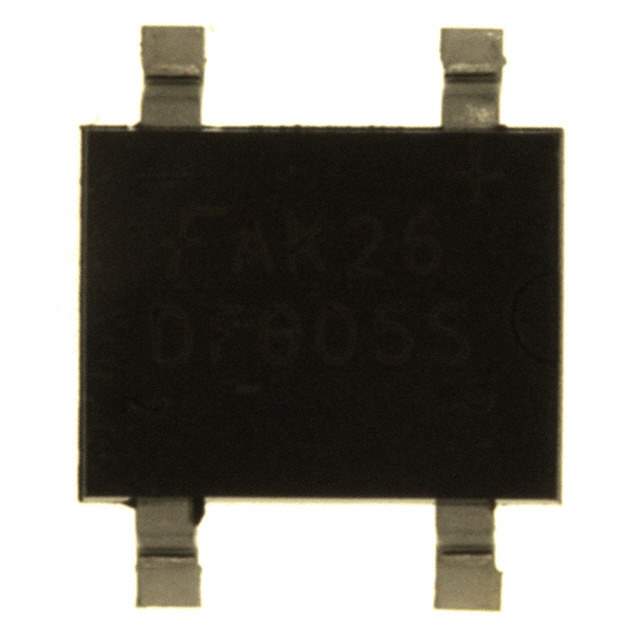

Product Overview: DF005S1 Bridge Rectifier
The DF005S1 is a robust bridge rectifier module designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This device is engineered to convert an alternating current (AC) input into a direct current (DC) output, a fundamental function in power supply applications.
Key Features
- Peak Reverse Voltage: The DF005S1 can withstand a high peak reverse voltage, ensuring stability and reliability in demanding applications.
- Forward Current: With a substantial average rectified forward current, this component is well-suited for a variety of electronic circuits requiring consistent power delivery.
- Surge Overload Rating: The surge overload rating protects the circuit from power surges, making the DF005S1 an excellent choice for electrical environments prone to voltage spikes.
- Low Forward Voltage Drop: The low forward voltage drop characteristic of this device results in higher efficiency and reduced thermal stress on the component.
- High Reliability: The DF005S1 is designed with ON Semiconductor's commitment to quality, ensuring a high level of reliability and performance longevity.
Applications
The DF005S1 bridge rectifier is versatile and can be used in various applications, such as:
- Power supplies for consumer electronics
- Adapters and battery chargers
- Office machines and home appliances
- Industrial equipment
Product Specifications
Parameter
Value
Package Type
SIP-4
Peak Reverse Voltage (V<sub>RRM)
50 V
Average Rectified Forward Current (I<sub>F(AV))
1 A
Operating Temperature Range
-55°C to +150°C
ON Semiconductor's DF005S1 is a reliable and efficient solution for your rectification needs, ensuring consistent performance and durability in a wide range of electronic applications.
