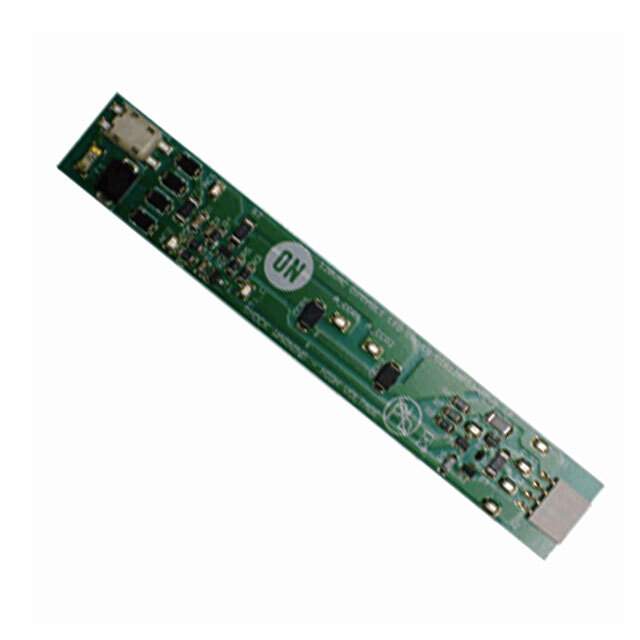

CCR120PS3AGEVB

Part No CCR120PS3AGEVB
Manufacturer ON Semiconductor
Catalog PMIC - LED Drivers
Description EVAL BOARD 120V CCR LED DRIVER / NSIC2030B, NSIC2050B 1, Non-Isolated Outputs LED Driver Evaluation Board
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - LED Drivers
Mfr onsemi
Package Box
Outputs and Type 1, Non-Isolated
Voltage - Input 100 ~ 130 VAC
Supplied Contents Board(s)
Utilized IC / Part NSIC2030B, NSIC2050B
Base Product Number CCR120
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Standard Package 1
Win Source Part Number 1164299-CCR120PS3AGEVB
Ultra Librarian 3D Model Ultra Librarian CCR120PS3AGEVB CAD Model

Description

ON Semiconductor CCR120PS3AGEVB Product Overview

The CCR120PS3AGEVB from ON Semiconductor is a versatile and innovative evaluation board designed for testing the performance and capabilities of the Constant Current Regulator (CCR) in a wide range of applications. This evaluation board is specifically tailored for the NSI45020T1G series of adjustable constant current regulators and LED drivers that offer a robust and energy-efficient solution for controlling current in various lighting and illumination systems.

Constructed with high-quality materials and engineered for reliability, the CCR120PS3AGEVB is an excellent tool for engineers and designers looking to explore the functionalities of ON Semiconductor's constant current regulators. It provides a straightforward platform for quick prototyping, allowing users to easily configure and test the CCR under different conditions and with various load configurations.

The board is designed with user convenience in mind, featuring standard connectors and test points that facilitate easy measurement and monitoring of the CCR's performance. It supports a wide input voltage range, making it suitable for use in a variety of power supply scenarios. Additionally, the evaluation board comes equipped with multiple protection features, such as thermal shutdown and overcurrent protection, ensuring safe operation during testing.

Key features of the CCR120PS3AGEVB include its compact size and the inclusion of a pre-mounted NSI45020T1G adjustable CCR, which can handle up to 45 V and is capable of driving LED strings with currents from 20 mA up to 100 mA. This flexibility makes the evaluation board an ideal choice for developing applications such as automotive lighting, signage, and general illumination, where consistent and reliable current regulation is essential.

Whether you are a seasoned professional or a newcomer to the field of LED lighting, the CCR120PS3AGEVB evaluation board from ON Semiconductor provides a valuable and user-friendly platform for experimenting with and understanding the dynamics of constant current regulation in LED applications. Its robust design and versatile features make it a must-have tool for any development lab working with current-regulated lighting solutions.
