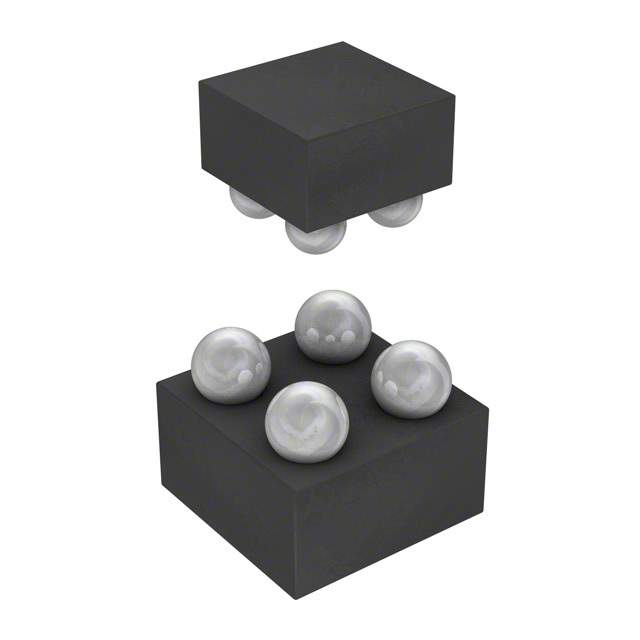

ON Semiconductor CAT24S128C4ATR EEPROM

The CAT24S128C4ATR is a high-performance, serial electrically erasable programmable read-only memory (EEPROM) device from ON Semiconductor. This robust storage solution offers a 128-Kb (16,384 x 8) memory size, making it suitable for a wide range of applications that require reliable non-volatile memory storage. The EEPROM is organized as 16,384 words of 8 bits each, providing ample space for configuration parameters, device identification, and calibration data storage.

One of the key features of the CAT24S128C4ATR is its I²C-compatible serial interface, which supports standard and fast I²C protocols. The device's I²C bus compatibility allows for easy integration into existing systems with minimal additional components, making it a versatile choice for designers. The address pins enable up to four CAT24S128 devices on the same bus, providing flexibility for memory expansion.

The CAT24S128C4ATR operates over a wide voltage range of 1.7V to 5.5V, accommodating various system voltage requirements and ensuring compatibility with both 3.3V and 5V logic levels. This feature makes the device suitable for use in portable and battery-powered applications where power supply levels can vary.

Furthermore, the CAT24S128C4ATR boasts a robust endurance of 1,000,000 program/erase cycles and a data retention period of 100 years. These characteristics ensure that data remains secure and reliable over the product's lifetime, even under frequent data updates. Additionally, the device supports a write protect pin (WP), which prevents accidental data alteration during critical operations or after deployment in the field.

For design flexibility and ease of use, the CAT24S128C4ATR comes in an 8-lead TSSOP package, which is suitable for space-constrained applications. The device also features a self-timed write cycle with auto-erase, simplifying the write interface and reducing software overhead during write operations.

In summary, the CAT24S128C4ATR from ON Semiconductor is a reliable and flexible EEPROM solution that offers a substantial amount of non-volatile storage, low power consumption, and a user-friendly interface for a wide array of applications in the consumer, industrial, and automotive markets.
