Products specifications

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Common Anode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) (per Diode) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 800mV @ 100mA
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage @ Vr 2μA @ 25V
Operating Temperature - Junction -55°C to 150°C
Mounting SMD (SMT)
Case / Package SOT-23-3 (TO-236)
Win Source Part Number 010975-BAT54ALT1G
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BAT54ALT1G CAD Model

Description

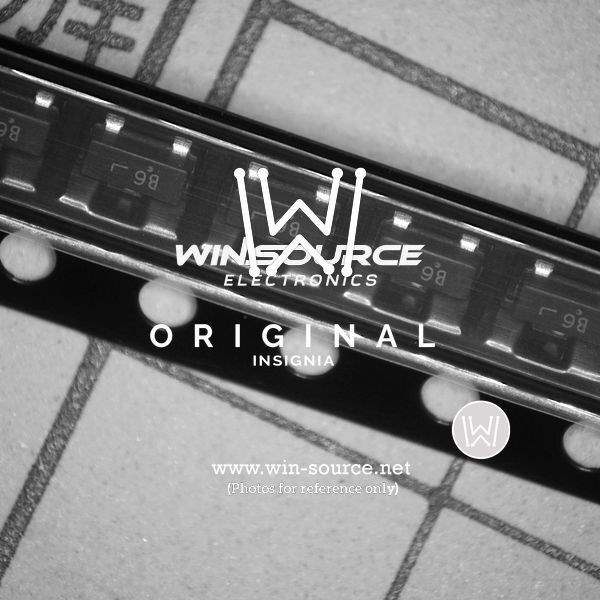

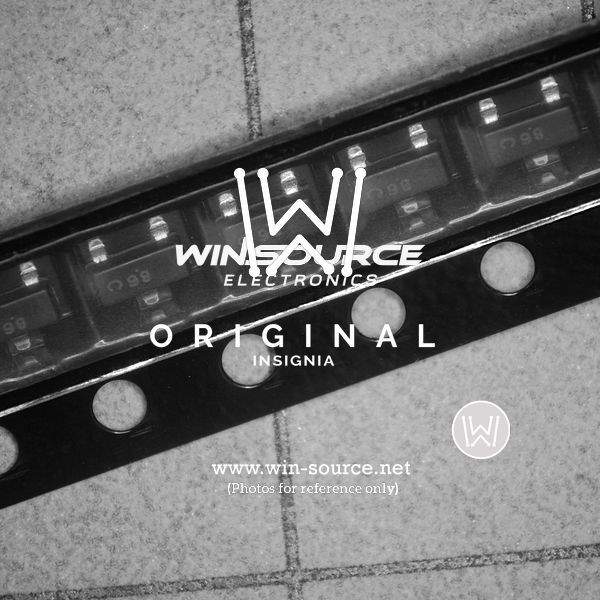

ON Semiconductor BAT54ALT1G - Schottky Barrier Diode

The BAT54ALT1G from ON Semiconductor is a surface mount Schottky Barrier Diode that offers fast switching speeds and low forward voltage drop. This diode is designed for high efficiency within compact electronic systems and is particularly well-suited for portable and battery-powered applications due to its low power consumption and small form factor.

Key Features:

  • Low Forward Voltage: The BAT54ALT1G provides a low forward voltage drop, typically only 0.32V at 10mA, which enhances overall system efficiency by minimizing power loss during conduction.
  • High Switching Speed: With its fast switching capability, this Schottky diode is ideal for high-frequency applications, offering improved performance for circuits that require rapid switching.
  • Surface Mount Package: Encased in an SOT-23 package, the BAT54ALT1G is designed for automated assembly processes, and its small footprint makes it suitable for densely packed PCBs.
  • Series Configuration: This device features two diodes connected in series, which can be beneficial in applications requiring a higher breakdown voltage or for implementing complex rectification schemes.
  • Low Reverse Leakage Current: It exhibits low leakage current, reducing power consumption when the diode is in the reverse-biased state, thus contributing to the battery life in portable devices.
  • RoHS Compliant: The BAT54ALT1G complies with the RoHS directive, which means it is free from hazardous substances like lead, making it suitable for use in environmentally-sensitive applications.

Applications:

The versatile nature of the BAT54ALT1G allows it to be used in a wide variety of applications, including:

  • DC-DC converters
  • Power management systems
  • Protection circuits
  • Switching power supplies
  • Logic systems
  • Portable electronic devices

With its combination of efficiency, speed, and compact size, the ON Semiconductor BAT54ALT1G is a reliable and cost-effective choice for designers looking to optimize their power-sensitive applications.
