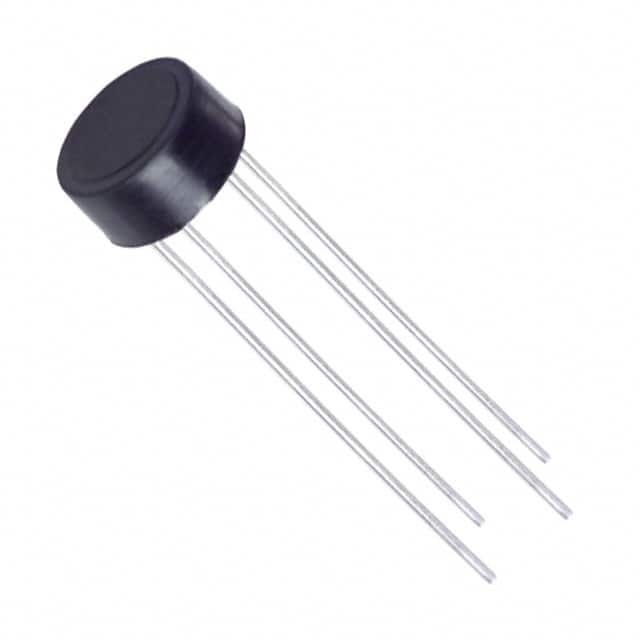

ON Semiconductor 2W06G Rectifier
The ON Semiconductor 2W06G is a highly efficient, single-phase, silicon bridge rectifier optimized for converting alternating current (AC) to direct current (DC). This robust component is designed to withstand harsh environments and is ideal for a wide range of applications, including power supplies, battery charging systems, and other electronic devices that require rectification.
Key Features
- High Current Capability: The 2W06G is capable of handling 2A of average rectified output current, making it suitable for moderate power requirements.
- High Surge Current Capability: It can withstand surge currents, ensuring reliability and stability in the event of power spikes.
- Low Forward Voltage Drop: The device features a low forward voltage drop, which enhances power efficiency and reduces thermal stress on the component.
- Versatility: With a maximum repetitive peak reverse voltage of 600V, the 2W06G is versatile enough to be used in a variety of electronic circuits.
- Robust Design: Encapsulated in a durable, molded plastic case, the 2W06G offers superior insulation and protection against mechanical damage and corrosive elements.
- Easy Mounting: Its through-hole mounting design allows for easy assembly on printed circuit boards.
Applications
The ON Semiconductor 2W06G is widely used across different sectors due to its reliability and efficiency. Its typical applications include:
- General purpose AC/DC bridge full wave rectification
- Switching power supplies
- Adapters
- Lighting applications
- Home appliances
- Office equipment
Technical Specifications
Parameter
Value
Average Rectified Output Current
2A
Repetitive Peak Reverse Voltage
600V
Operating Junction Temperature
-55°C to +150°C
Forward Voltage Drop
1.1V at 2A
With its combination of performance, reliability, and versatility, the ON Semiconductor 2W06G stands out as a superior choice for designers and engineers looking for a dependable rectification solution.
