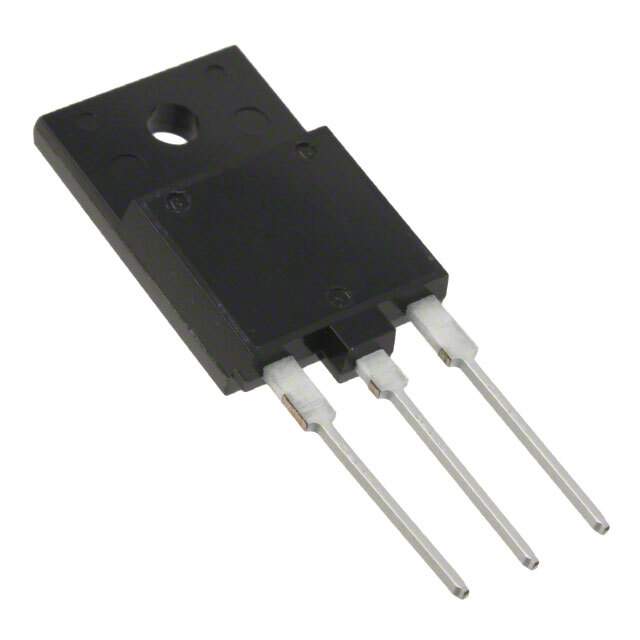

The 2SK3747 is a high-performance N-Channel MOSFET produced by ON Semiconductor, a leading name in the semiconductor industry. This MOSFET is designed to meet the requirements of a wide range of electronic applications, offering efficient power management and signal processing capabilities.
Key Features
- Voltage Rating: The 2SK3747 is capable of handling high voltages, making it suitable for various power applications.
- Current Capacity: With its robust current handling capacity, this MOSFET can manage significant power levels, contributing to its versatility in different circuit designs.
- Low RDS(on): The device exhibits low on-resistance, which translates to reduced power losses during operation and improved overall efficiency.
- Fast Switching Speed: The fast switching characteristics of the 2SK3747 make it an ideal choice for high-frequency applications where rapid transitions are essential.
- High Reliability: ON Semiconductor is known for its commitment to quality, and the 2SK3747 is built to offer reliable performance over its lifetime.
Applications
The 2SK3747 MOSFET is suitable for a variety of electronic circuits and can be used in:
- Power supply units
- DC-DC converters
- Motor control systems
- Switching applications
- Power management solutions
Technical Specifications
Parameter
Value
Drain-to-Source Voltage (VDSS)
600V
Continuous Drain Current (ID)
4A
Power Dissipation (PD)
40W
Operating Temperature Range
-55°C to +150°C
Quality and Support
ON Semiconductor ensures that each 2SK3747 MOSFET meets rigorous standards for quality and performance. Customers can also benefit from ON Semiconductor's comprehensive technical support and documentation, making integration and application of the 2SK3747 as smooth as possible.
