Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr onsemi
Series -
Package Tape & Reel
Product Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 13V
Voltage - Breakdown (Min) 14.4V
Voltage - Clamping (Max) @ Ipp 21.5V
Current - Peak Pulse (10/1000µs) 69.7A
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AB, SMC
Supplier Device Package SMC
Base Product Number 1SMC13
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1377394-1SMC13AT3
Ultra Librarian 3D Model Ultra Librarian 1SMC13AT3 CAD Model

Description

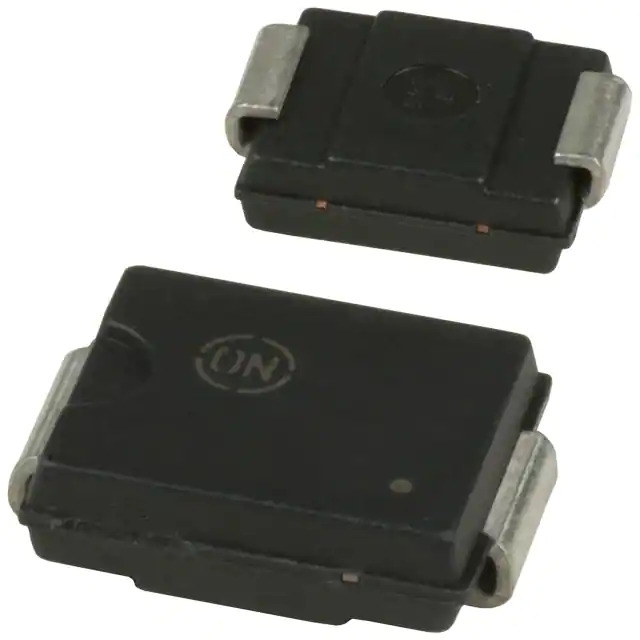

Product Overview: 1SMC13AT3 - ON Semiconductor

The 1SMC13AT3 is a robust transient voltage suppression (TVS) diode designed by ON Semiconductor, a leader in energy-efficient innovations. This high-performance device is engineered to protect sensitive electronic equipment from voltage transients induced by system inductive load switching and lightning on the power grid. The 1SMC13AT3 is ideal for safeguarding voltage-sensitive components which can be compromised by these sudden and extreme voltage spikes.

Key Features

  • Peak Pulse Power: The 1SMC13AT3 offers an impressive 1500W peak pulse power capability at 10/1000μs waveform, ensuring reliable protection against high energy transients.
  • Stand-Off Voltage: With a stand-off voltage of 13V, this TVS diode allows designers to precisely match the protection device to their specific application requirements.
  • Low Leakage: The device boasts minimal leakage current, ensuring energy efficiency and reducing power loss during operation.
  • Fast Response Time: The 1SMC13AT3 responds to over-voltage events in less than 1 picosecond, offering near-instantaneous protection for your circuitry.
  • Operating Temperature: It operates effectively across a wide temperature range from -55°C to +150°C, making it suitable for various challenging environments.
  • Package: Supplied in a transfer-molded plastic package, the 1SMC13AT3 is offered in the SMC package, which is designed for optimal automated board assembly.
  • Compliance: This device meets the ISO 7637-2 surge specification and complies with the RoHS directive 2011/65/EU and is AEC-Q101 qualified, ensuring suitability for automotive applications.

Applications

The 1SMC13AT3 is a versatile component that can be used in a variety of applications where transient voltage protection is critical. It is commonly employed in:

  • Automotive systems
  • Industrial platforms
  • Consumer electronics
  • Power supply units
  • Communication systems
  • Microprocessor-based equipment

ON Semiconductor's commitment to quality and performance is evident in the 1SMC13AT3 TVS diode. By providing robust transient voltage suppression, this product ensures the longevity and reliability of electronic systems across a broad spectrum of industries.
