Z-15GQ21-B

Part No Z-15GQ21-B
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 15A 125V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron Automation and Safety
Series Z
Package Tray
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 15A (AC), 6A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Cross Roller Plunger
Mounting Type Panel Mount
Termination Style Screw Terminal
Ingress Protection IP00
Features -
Operating Force 250 ~ 350gf
Release Force 114gf
Operating Position 1.313" (33.4mm)
Pretravel 0.015" (0.4mm)
Differential Travel 0.002" (0.05mm)
Overtravel 0.141" (3.6mm)
Temperature Range - Operating -25°C ~ 80°C
Electrical Life 500,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number Z-15G
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9040
Win Source Part Number 1376139-Z-15GQ21-B
Ultra Librarian 3D Model Ultra Librarian Z-15GQ21-B CAD Model

Description

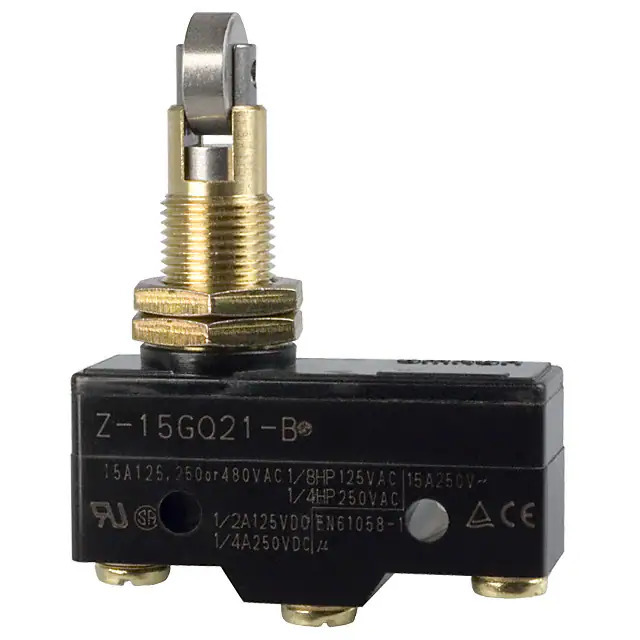

The Z-15GQ21-B is a limit switch from Omron Automation and Safety.

  • Series: Z
  • Mounting Type: Panel Mount
  • Current Rating (AC): 15A (AC)
  • Current Rating (DC): 6A (DC)
  • Ingress Protection: IP00
  • Actuator Type: Cross Roller Plunger
  • Termination Style: Screw Terminal
  • Mechanical Life: 10,000,000 Cycles
  • Electrical Life: 500,000 Cycles
  • Operating Force: 250 ~ 350gf
  • Release Force: 114gf
  • Operating Position: 1.313" (33.4mm)
  • Pretravel: 0.015" (0.4mm)
  • Differential Travel: 0.002" (0.05mm)
  • Overtravel: 0.141" (3.6mm)
