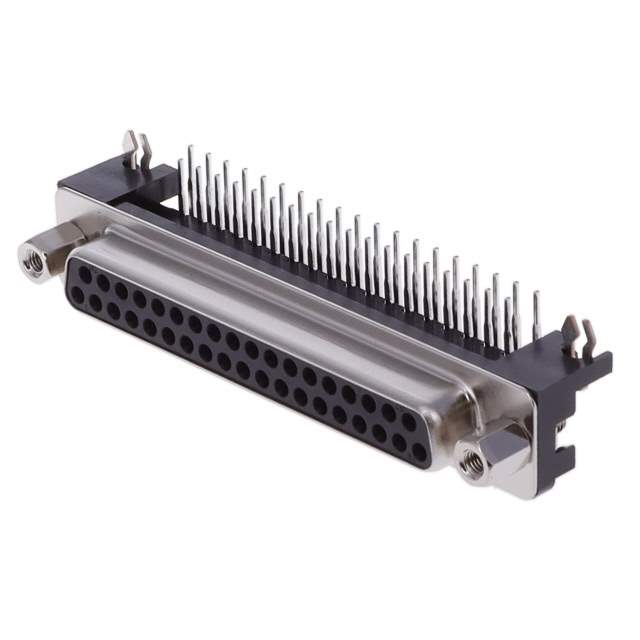

XM3B-3722-112 Real Image
Same model may have multiple batches, images only for reference.

XM3B-3722-112

Part No XM3B-3722-112
Manufacturer Omron
Catalog D - SUB, D - SHAPED connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Omron Electronics Inc-EMC Div
Series XM3B
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 37
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout 4 (DC, C)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (M2.6)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 16.0µin (0.41µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Features Board Lock, Shielded
Voltage Rating 300V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number XM3B
Other Names XM3B-3722-112,Z6589,XM3B3722112
Standard Package 40
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294110-XM3B-3722-112
Ultra Librarian 3D Model Ultra Librarian XM3B-3722-112 CAD Model

Description

The Omron Electronics Inc-EMC Div XM3B Series D-Sub Connectors are a reliable and high-quality connector solution for your interconnect needs.

  • Series: XM3B
  • Positions: 37
  • Color: Black
  • Shielded: Yes
  • Board Lock: Yes
  • Connector Type: Receptacle, Female Sockets
  • Contact Type: Signal
  • Rows: Two
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 16.0μin (0.41μm)
  • Package: Tray
  • Standard Package: 40
  • Voltage Rating: 300V
  • Mounting: Through-Hole, Panel Mount, Right-Angle
  • Temperature Range: -55°C to 105°C
  • ECCN: EAR99
