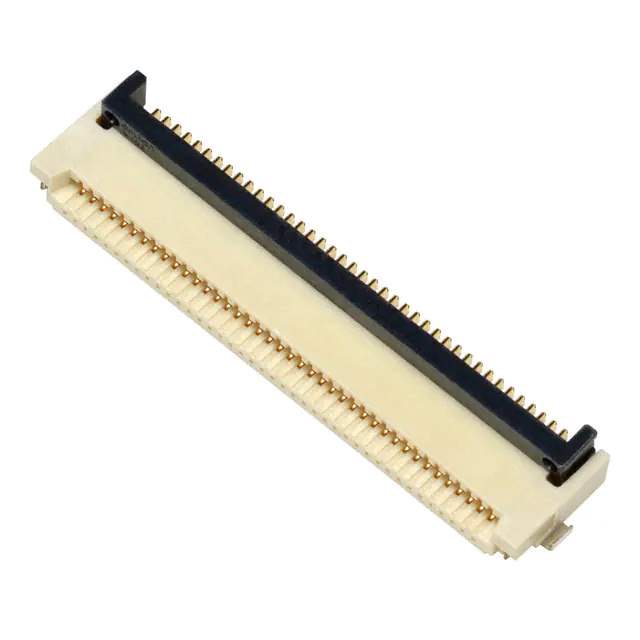

XF3M-4015-1B Real Image
Same model may have multiple batches, images only for reference.

XF3M-4015-1B

Part No XF3M-4015-1B
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC 40POS 0.5MM R/A
Datasheet
XF3M-4015-1B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Omron
Series XF3M
Package Tape & Reel
Product Status Active
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 40
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Rotary Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Features Solder Retention
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness Flash
Housing Color Natural
Actuator Color Black
Mating Cycles 20
Base Product Number XF3M
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 846611-XF3M-4015-1B
Ultra Librarian 3D Model Ultra Librarian XF3M-4015-1B CAD Model

Description

The XF3M-4015-1B is a 40-position FFC/FPC (Flat Flexible) Connector Assembly from Omron. Bold the product name (e.g., BAV99S,135 → XF3M-4015-1B) and manufacturer (e.g., Nexperia USA Inc. → Omron).

  • Number of Positions: 40
  • Pitch: 0.020" (0.50mm)
  • Mounting Type: Surface Mount, Right Angle
  • Height Above Board: 0.079" (2.00mm)
  • Voltage Rating: 50V
  • Termination: Solder
  • Contact Finish: Gold with Flash Thickness
  • Contact Material: Copper Alloy
  • Housing and Actuator Material: Liquid Crystal Polymer (LCP)
  • Housing Color: Natural
  • Halogen Free: Yes
  • Current Rating: 0.5A
  • Operating Temperature: -30°C to 85°C
  • Locking Feature: Rotary Lock, Backlock
  • Cable End: Tapered
  • Package: Tape & Reel
  • Package Quantity: 1,500 pcs
  • Series: XF3M
  • Status: Active
