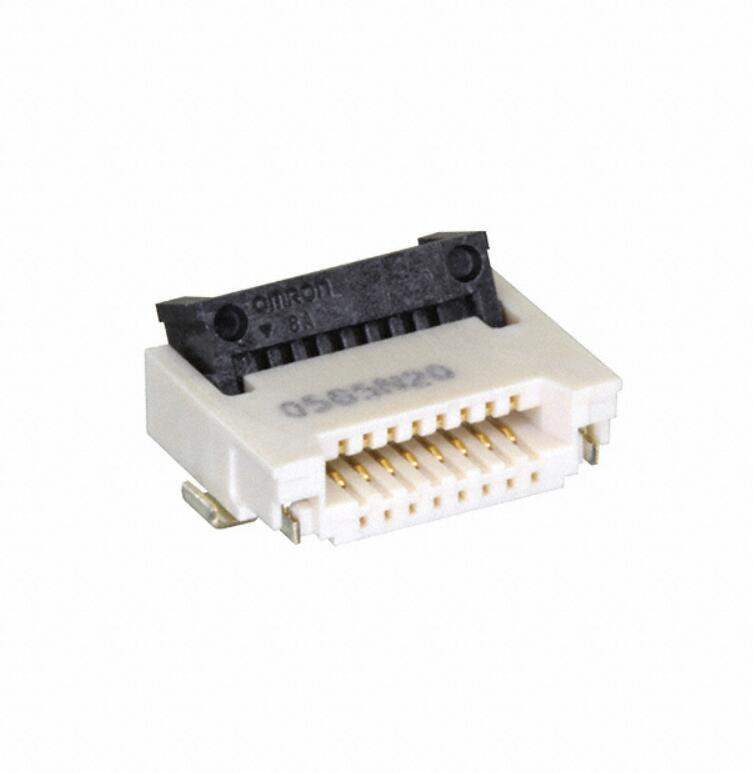

XF3M-0815-1BOmron Electronics Inc-EMC Div
Same model may have multiple batches, images only for reference.

XF3M-0815-1B

Part No XF3M-0815-1B
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC 8POS 0.5MM R/A
Datasheet
XF3M-0815-1B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201745-XF3M-0815-1B
Win Source Part Number Cross
Manufacturer Omron Electronics Inc-EMC Div
Category Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Series XF3M
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 8
Ultra Librarian 3D Model Ultra Librarian XF3M-0815-1B CAD Model

Description

Omron Electronics Inc-EMC Div offers the XF3M series of FFC, FPC (Flat Flexible) connectors and connector assemblies.

  • Package: tape & reel (TR) cut tape (CT) package
  • Positions: 8 positions
  • Contacts: top and bottom
  • Mounting: surface mount, right angle mounting
  • Series: XF3M series
