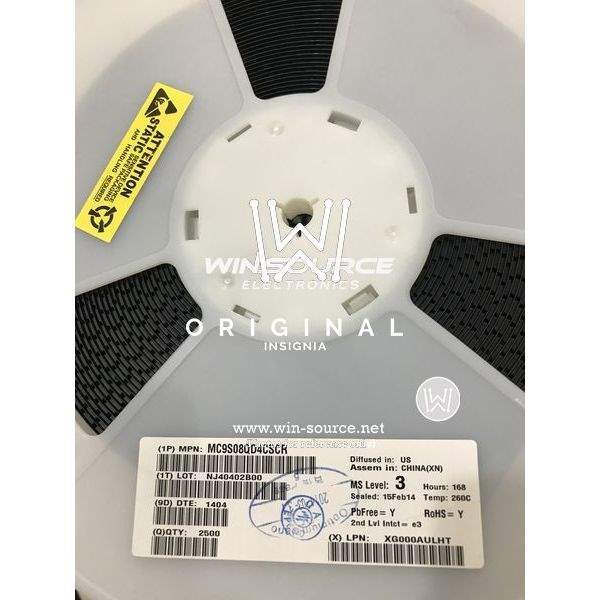

MC9S08QD4CSC Freescale Semiconductor - NXP MC9S08QD4CSC Real Image MC9S08QD4CSC label picture MC9S08QD4CSC label picture 2
Same model may have multiple batches, images only for reference.
MC9S08QD4CSC Freescale Semiconductor - NXP MC9S08QD4CSC Real Image MC9S08QD4CSC label picture MC9S08QD4CSC label picture 2
MC9S08QD4CSC Freescale Semiconductor - NXP MC9S08QD4CSC Real Image MC9S08QD4CSC label picture MC9S08QD4CSC label picture 2
Same model may have multiple batches, images only for reference.

MC9S08QD4CSC

Part No MC9S08QD4CSC
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 8BIT 4KB FLASH 8SOIC
Datasheet
MC9S08QD4CSC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tube/Rail
Status Active
Core Processor S08
Part Core Size 8-Bit
Speed(Frequency) 16MHz
Number of I/O 4
Program Memory Size 4KB (4K x 8)
Program Memory Type FLASH
Data RAM Size 256 x 8
Supply Voltage - Operating 2.7 V to 5.5 V
Data Converters A/D 4x10b
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 8-SOIC
Win Source Part Number 022984-MC9S08QD4CSC
Family Name MC9S08QD4
Introduction Date July 25, 2006
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2025
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MC9S08QD4CSC CAD Model

Description

The NXP MC9S08QD4CSC is an 8-bit microcontroller designed for embedded control applications in the automotive, industrial, and consumer markets.

  • Program Memory: 4KB flash
  • RAM: 256B
  • Data Converters: 4x10b A/D
  • Frequency: 16MHz
  • Supply Voltage Range: 2.7V to 5.5V
  • Package: 8-SOIC
  • Compliance: Halogen-free standards
