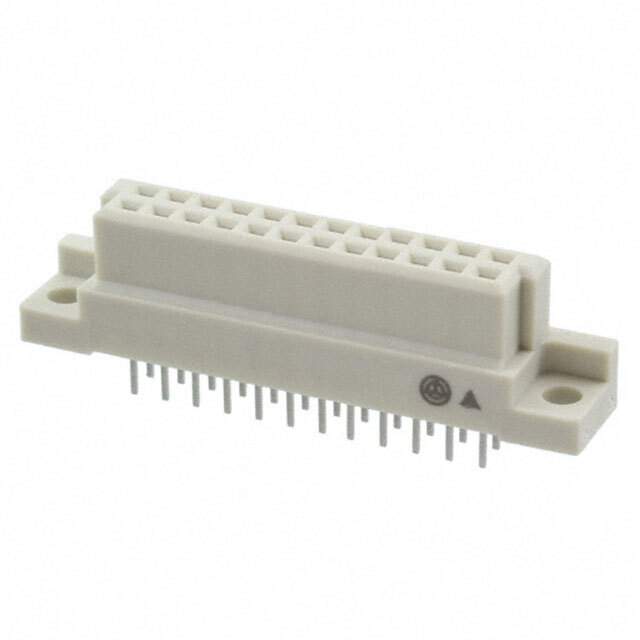

XC5B01310ABYOMR Real Image
Same model may have multiple batches, images only for reference.

XC5B01310ABYOMR

Part No XC5B01310ABYOMR
Manufacturer Omron
Catalog Backplane Connectors
Description CONN DIN RCPT 100POS PCB / 100 Position Din Connector Receptacle, Female Sockets Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr Omron Electronics Inc-EMC Div
Series XC5
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 100
Pitch 0.100" (2.54mm)
Number of Rows 2
Style B
Mounting Type Through Hole
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 2A
Material Flammability Rating UL94 V-0
Material - Insulation Polybutylene Terephthalate (PBT) , Glass Filled
Base Product Number XC5B
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1351362-XC5B01310ABYOMR
Ultra Librarian 3D Model Ultra Librarian XC5B01310ABYOMR CAD Model

Description

The Omron XC5B01310ABYOMR is a 100-position DIN 41612 backplane connector with a pitch of 0.100 inches.

  • Series: XC5
  • Number of Positions: 100
  • Pitch: 0.100 inches
  • Temperature Range: -55°C to 125°C
  • Mounting Type: Through Hole
  • Flammability Rating: UL94 V-0
