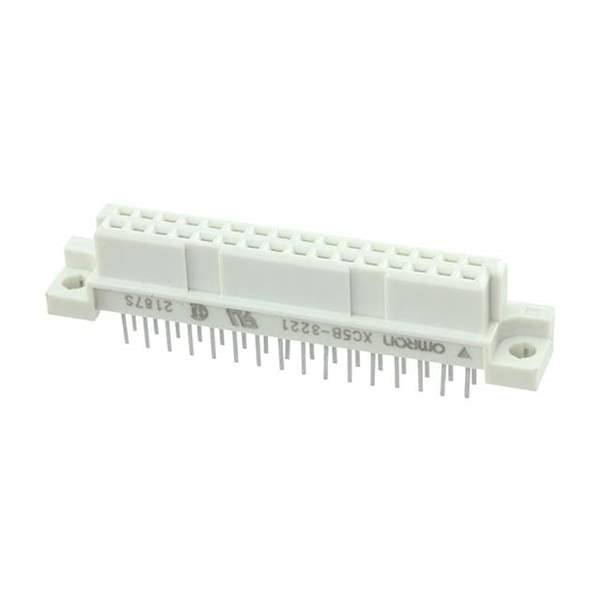

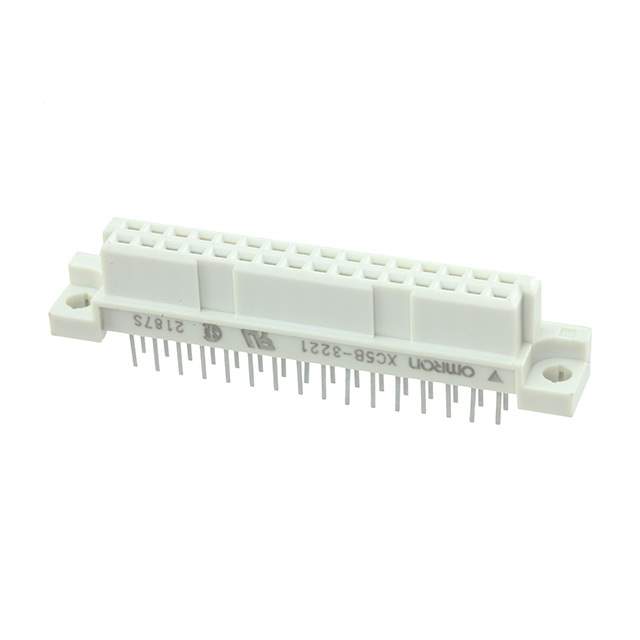

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number 2001194-XC5B-3221
Win Source Part Number Cross
Manufacturer Omron Electronics Inc-EMC Div
Category Connectors, Interconnects Backplane Connectors DIN 41612
Series XC5
Package Bulk
Product Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 32
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Ultra Librarian 3D Model Ultra Librarian XC5B-3221 CAD Model

Description

The Omron Electronics Inc-EMC Div XC5 is a DIN 41612 backplane connector with 32 positions and a 0.100" (2.54mm) pitch.

  • Type: receptacle with female sockets
  • Loading: loaded with all positions
