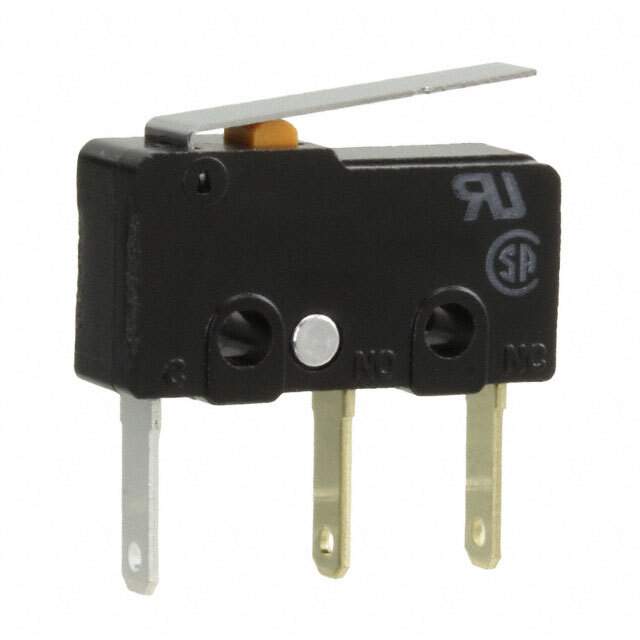

The Omron SS-5GL-FT is a SPDT limit switch with a circuit that is rated for 5A (AC) and an operating force of 16gf.

• Current Rating: 5A (AC)
• Operating Force: 16gf
• Switch Function: On-Mom
• Actuator Type: Lever and Straight
• Electrical Life: 200,000 cycles
• Mechanical Life: 30,000,000 cycles
• Release Force: 2.039gf
• Differential Travel: 0.031" (0.8mm)
• Overtravel: 0.047" (1.2mm)
• Operating Position: 0.345" (8.8mm)
• Mounting Type: Chassis Mounted
• Termination Style: Quick Connect - 0.110" (2.8mm)
• Ingress Protection: IP40
• Voltage: 125V (AC)
• Temperature Range: -25°C to 85°C
• Circuit: SPDT
