Same model may have multiple batches, images only for reference.

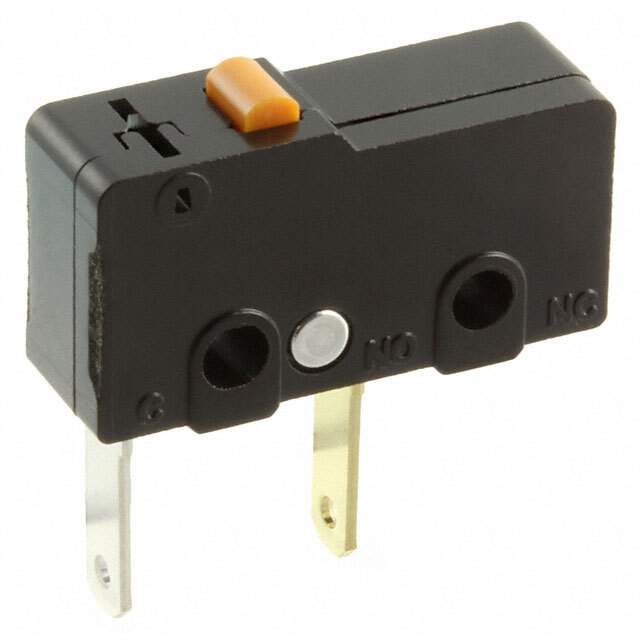

SS-5-3T Real Image
Same model may have multiple batches, images only for reference.

SS-5-3T

Part No SS-5-3T
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPST-NO 5A 125V  /  Switch SPST-NO Chassis Mount
Datasheet
SS-5-3T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP40
Operating Force 150gf
Release Force 25gf
Pretravel 0.020" (0.5mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.020" (0.5mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.330" (8.4mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5
Other Names SS53TBYOMI,Z4568,SS-5-3T,-SS-5-3T,SS53T
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233498-SS-5-3T
Ultra Librarian 3D Model Ultra Librarian SS-5-3T CAD Model

Description

The SS-5-3T limit switch from Omron Electronics Inc-EMC Div is a versatile and reliable component that is ideal for use in a wide range of applications.

  • Termination Style: Quick Connect
  • Ingress Protection: IP40
  • Voltage Rating: 125 V AC
  • Standard Package: 500
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Round Pin Plunger
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 30,000,000 cycles
  • Operating Force: 150gf
  • Release Force: 25gf
  • Pretravel: 0.020"
  • Differential Travel: 0.004"
  • Overtravel: 0.020"
  • Mounting Type: Chassis Mount
  • Operating Temperature Range: -25°C to 85°C
