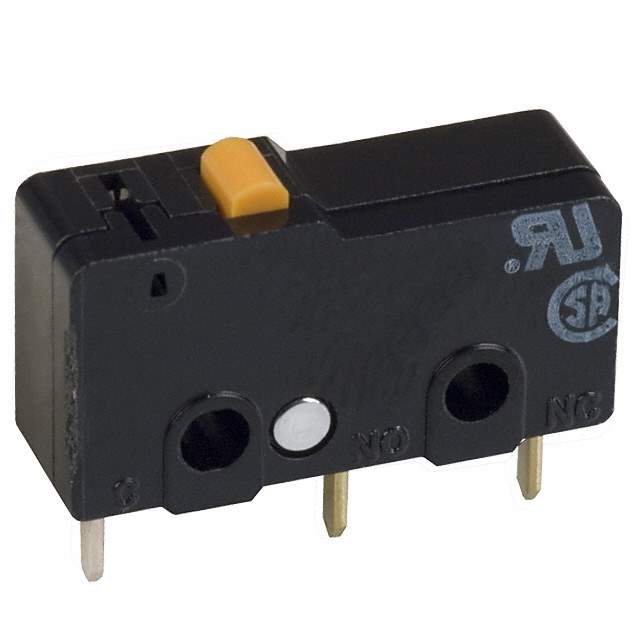

SS-10D Real Image
Same model may have multiple batches, images only for reference.

SS-10D

Part No SS-10D
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 10A 250V  /  Switch SPDT Through Hole
Datasheet
SS-10D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 250 V
Actuator Type Round (Pin Plunger)
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 150gf
Release Force 25gf
Pretravel 0.024" (0.6mm)
Differential Travel 0.005" (0.12mm)
Overtravel 0.015" (0.4mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.330" (8.4mm)
Electrical Life 50,000 Cycles
Mechanical Life 10,000,000 Cycles
Other Names SS-10D,SW1478,SS10D
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233477-SS-10D
Ultra Librarian 3D Model Ultra Librarian SS-10D CAD Model

Description

The Omron Electronics Inc-EMC Div SS-10D is a high-quality limit switch designed for use in a variety of applications.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Voltage Rating: 250V AC
  • Current Rating: 10A
  • Mounting: Through-Hole
  • Ingress Protection: IP40
  • Supply and Demand Status: Balanced
