Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS-P
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP40
Operating Force 51gf
Release Force 5.099gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.040" (1.0mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number SS-3GL
Other Names SS3GLPTBYOMZ,SS-3GLPT BY OMZ,Q10128448,SS3GLPT,SW767
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233415-SS-3GLPT
Ultra Librarian 3D Model Ultra Librarian SS-3GLPT CAD Model

Description

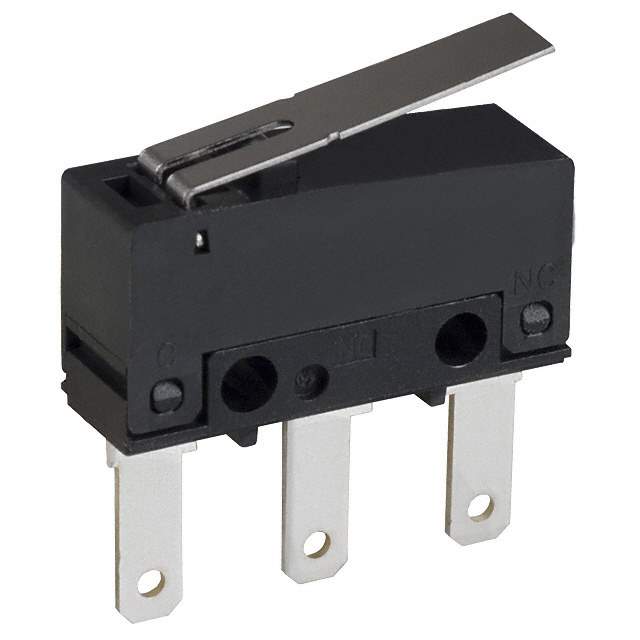

The Omron Electronics Inc-EMC Div SS-3GLPT is a SPDT limit switch that has a straight lever actuator type.

  • Voltage Rating: 125V AC, 30V DC
  • Current Rating: 3A (AC/DC)
  • Mechanical Life: 1,000,000 cycles
  • Electrical Life: 100,000 cycles
  • Operating Temperature Range: -25°C to 85°C
  • Differential Travel: 0.031" (0.8mm)
  • Ingress Protection: IP40
  • Mounting: Chassis
  • Termination Style: Quick Connect - 0.110" (2.8mm)
  • ECCN: EAR99
  • RoHS: Compliant
