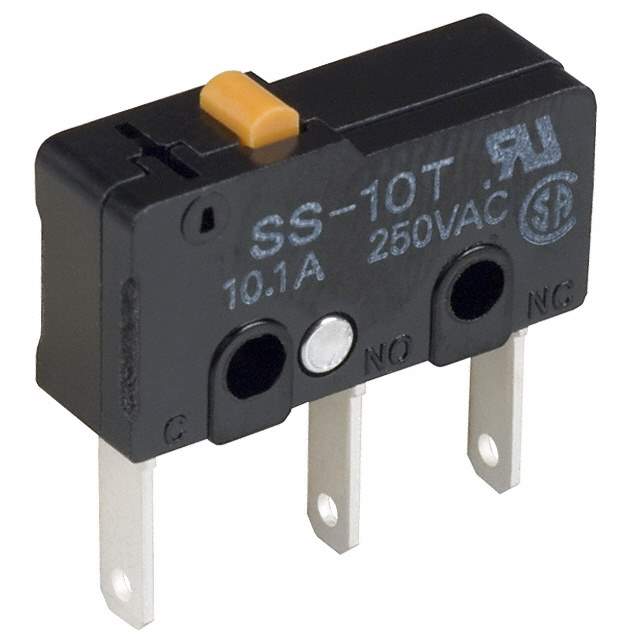

SS-10T Real Image
Same model may have multiple batches, images only for reference.

SS-10T

Part No SS-10T
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 10A 250V / Switch SPDT Chassis Mount
Datasheet
SS-10T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 250 V
Actuator Type Round (Pin Plunger)
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP40
Operating Force 150gf
Release Force 25gf
Pretravel 0.024" (0.6mm)
Differential Travel 0.005" (0.12mm)
Overtravel 0.015" (0.4mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.330" (8.4mm)
Electrical Life 50,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SS-10
Other Names SS-10T BY OMI,SW245,SS10TBYOMI,SS10T
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233478-SS-10T
Ultra Librarian 3D Model Ultra Librarian SS-10T CAD Model

Description

The Omron SS-10T is a high-quality limit switch that is suitable for various applications.

  • Win Source Part Number: 1233478-SS-10T
  • Category: Switches
  • Series: SS series
  • Circuit: SPDT
  • Voltage Rating: 250V AC
  • Current Rating: 10A
  • Mounting: Chassis Mount
  • Temperature Range: -25°C to 85°C
