Same model may have multiple batches, images only for reference.

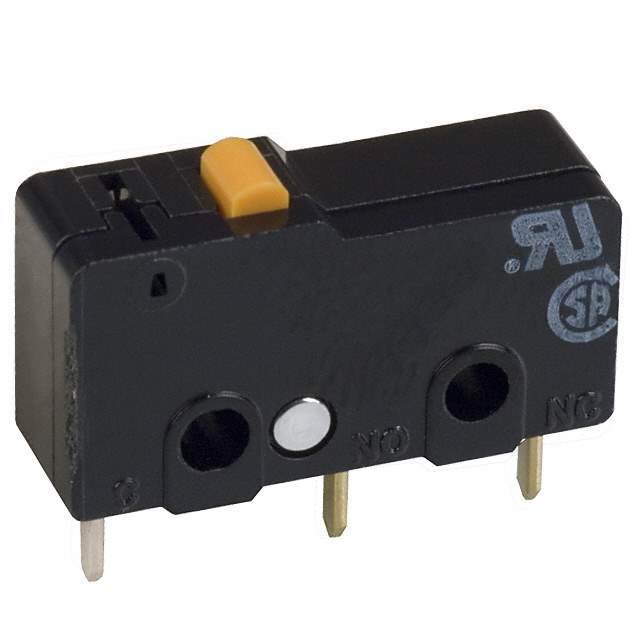

SS-10D-T Real Image
Same model may have multiple batches, images only for reference.

SS-10D-T

Part No SS-10D-T
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 10A 250V / Switch SPDT Through Hole
Datasheet
SS-10D-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 10A (AC)
Voltage Rating - AC 250 V
Actuator Type Round (Pin Plunger)
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 150gf
Release Force 25gf
Pretravel 0.024" (0.6mm)
Differential Travel 0.005" (0.12mm)
Overtravel 0.015" (0.4mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.330" (8.4mm)
Electrical Life 50,000 Cycles
Mechanical Life 10,000,000 Cycles
Other Names SS10DT,SS-10D-T,Z12981
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233561-SS-10D-T
Ultra Librarian 3D Model Ultra Librarian SS-10D-T CAD Model

Description

The SS-10D-T is a limit switch manufactured by Omron Electronics Inc-EMC Div.

  • Win Source Part Number: 1233561
  • Series: SS
  • Termination Style: PC Pin
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Round (Pin Plunger)
  • Operating Force: 150gf
  • Electrical Life: 50,000 cycles
  • Mechanical Life: 10,000,000 cycles
  • ECCN: EAR99
