Product Overview: MAX3222EEUP+ from Maxim Integrated

The MAX3222EEUP+ is a high-performance, low-power, RS-232 transceiver from Maxim Integrated, designed to operate with a single +3.0V to +5.5V power supply. This device is particularly suitable for battery-powered applications due to its low-power consumption and efficient power management features. It is capable of meeting the requirements of EIA/TIA-232-F and V.28/V.24 specifications, even at low voltages, making it an ideal choice for portable and space-constrained applications.

The MAX3222EEUP+ features a dual charge pump circuit that enables true RS-232 performance from a single power supply, eliminating the need for additional ±12V power supplies. This integrated charge pump, along with onboard 0.1μF capacitors, reduces the number of external components required, thereby simplifying design and saving board space. The device can operate at data rates up to 120kbps, providing a reliable and efficient communication interface for serial data transmission.

This transceiver includes two drivers and two receivers, offering a complete solution for RS-232 communication. The MAX3222EEUP+ also incorporates a proprietary low-dropout transmitter output stage, delivering true RS-232 performance from a 3.0V to 5.5V supply with a minimal ±5.0V output swing for data transmission. Additionally, the device features a shutdown mode that reduces power consumption to just 1μA, further extending battery life in portable applications.

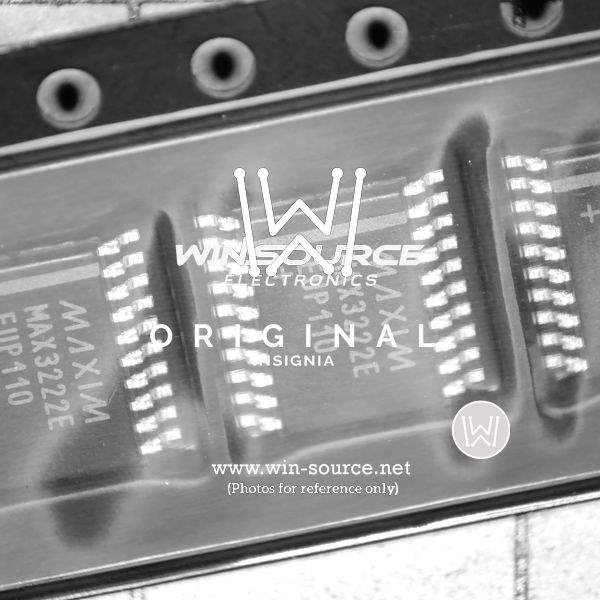

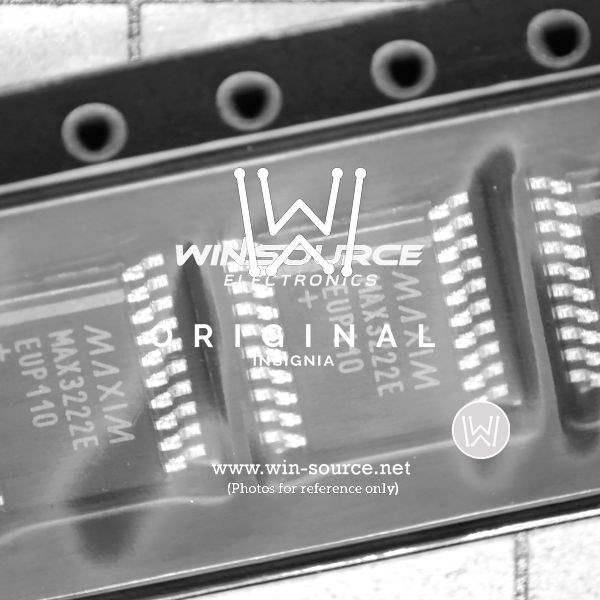

The MAX3222EEUP+ comes in a 20-pin TSSOP package, providing a compact form factor that is suitable for a wide range of applications, including portable computers, PDAs, cellular phones, and other handheld devices. Its enhanced electrostatic discharge (ESD) protection up to ±15kV using the IEC 1000-4-2 Air Gap method and ±8kV using the IEC 1000-4-2 Contact Discharge method ensures robust operation in environments where ESD events may occur.

In summary, the MAX3222EEUP+ by Maxim Integrated is a versatile and efficient RS-232 transceiver that offers low-power operation, high data rate capabilities, and robust protection features, making it an excellent choice for designers looking to implement reliable serial communication in their battery-powered or space-constrained devices.
