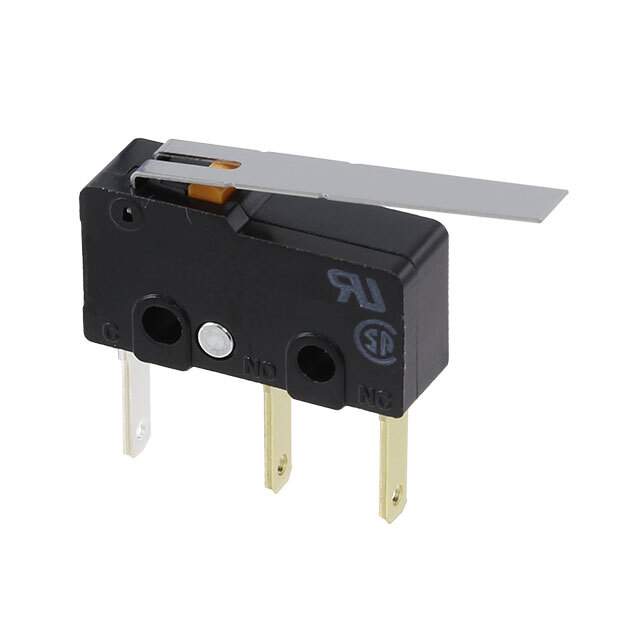

SS-01GL111T Real Image
Same model may have multiple batches, images only for reference.

SS-01GL111T

Part No SS-01GL111T
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Chassis Mount
Datasheet
SS-01GL111T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP40
Operating Force 40gf
Release Force 3.059gf
Differential Travel 0.047" (1.2mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01GL
Other Names SS01GL111TBYOMI,Z4541,-SS-01GL111T,SS-01GL111T,SS01GL111T
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233576-SS-01GL111T
Ultra Librarian 3D Model Ultra Librarian SS-01GL111T CAD Model

Description

The SS-01GL111T is a limit switch from Omron Electronics Inc-EMC Div.

  • Circuit: SPDT
  • Termination Style: Quick Connect
  • Voltage Rating: 125V AC and 30V DC
  • Current: 100mA
  • Switch Function: On-Mom
  • Actuator Type: Straight Lever
  • Mechanical Life: 30,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Operating Force: 40gf
  • Release Force: 3.059gf
  • Ingress Protection: IP40
  • Temperature Range: -25°C to 85°C
  • Mounting: Chassis Mounting
  • Packaging: Bulk
  • Contact Pitch: 0.110 inches (2.8mm)
