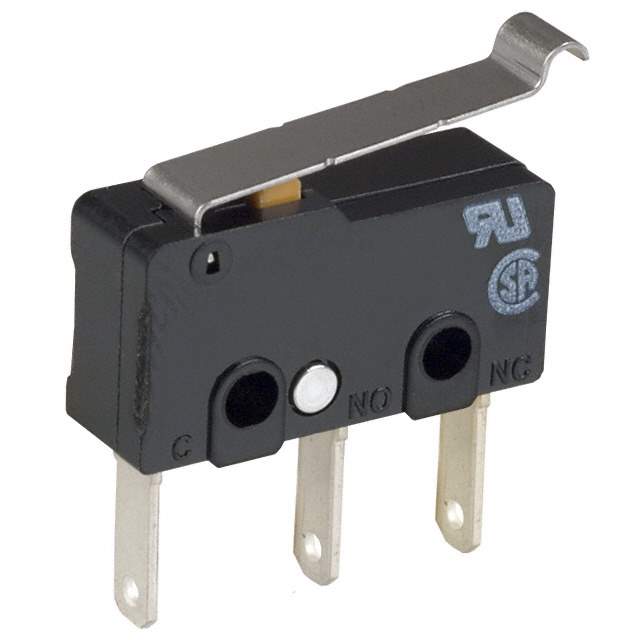

SS-01GL13-FT Real Image
Same model may have multiple batches, images only for reference.

SS-01GL13-FT

Part No SS-01GL13-FT
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Chassis Mount
Datasheet
SS-01GL13-FT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP40
Operating Force 16gf
Release Force 2.039gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.420" (10.7mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01GL
Other Names -SS-01GL13-FT,SS01GL13FT,Z4547,SS-01GL13-FT,SS01GL13FTBYOMI
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233580-SS-01GL13-FT
Ultra Librarian 3D Model Ultra Librarian SS-01GL13-FT CAD Model

Description

The Omron Electronics Inc-EMC Div SS-01GL13-FT is a limit switch that belongs to the SS series.

  • Circuit Configuration: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever with a simulated roller
  • Operating Force: 16gf
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 30,000,000 cycles
  • Differential Travel: 0.031 inches
  • Overtravel: 0.047 inches
  • Mounting Type: Chassis Mount
  • Operating Temperature Range: -25°C to 85°C
