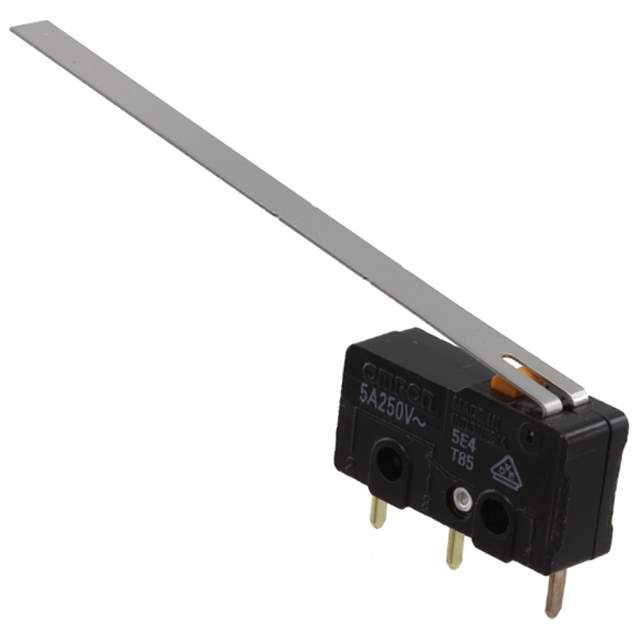

SS-5GL1131 Real Image
Same model may have multiple batches, images only for reference.

SS-5GL1131

Part No SS-5GL1131
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V / Switch SPDT Chassis Mount
Datasheet
SS-5GL1131 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Temperature Range - Operating -25°C ~ 85°C
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5
Other Names SS5GL1131
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233555-SS-5GL1131
Ultra Librarian 3D Model Ultra Librarian SS-5GL1131 CAD Model

Description

This SS series limit switch from Omron Electronics Inc-EMC Div is designed for use in a variety of applications, including those that require a chassis mount.

  • Voltage Rating: 125 V AC
  • Circuit Configuration: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever, Straight
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 30,000,000 cycles
  • Mounting Type: Chassis Mount
  • Temperature Range: -25°C to 85°C
  • Ingress Protection Rating: IP40
  • Standard Package: 500 pieces
  • Current Rating: 5A (AC)
  • ECCN: EAR99
