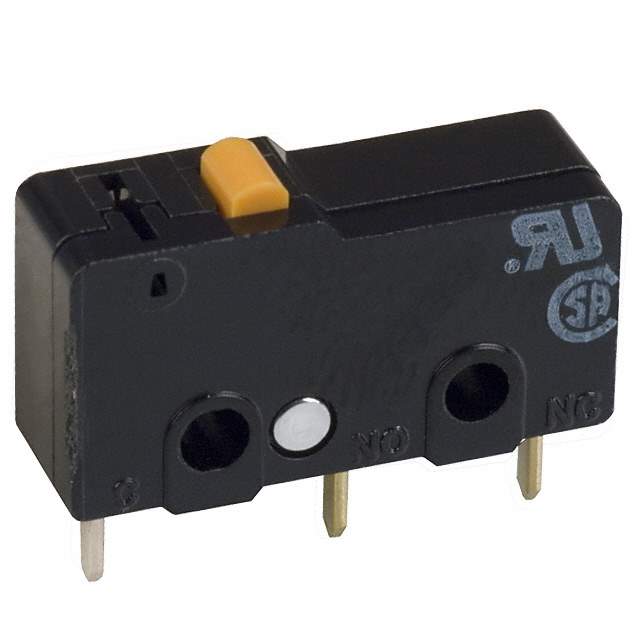

SS-01-ED2 Real Image
Same model may have multiple batches, images only for reference.

SS-01-ED2

Part No SS-01-ED2
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Through Hole, Right Angle
Datasheet
SS-01-ED2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Round (Pin Plunger)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Ingress Protection IP40
Operating Force 25gf
Release Force 2.039gf
Pretravel 0.020" (0.5mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.020" (0.5mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.330" (8.4mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01
Other Names SS01ED2
Standard Package 400
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233566-SS-01-ED2
Ultra Librarian 3D Model Ultra Librarian SS-01-ED2 CAD Model

Description

The SS-01-ED2 is a SPDT On-Mom Round Pin Plunger Limit Switch manufactured by Omron Electronics Inc-EMC Div.

  • Termination Style: PC Pin
  • Electrical Life: 200,000 cycles
  • Operating Force: 25gf
  • Ingress Protection: IP40
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Round Pin Plunger
