Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS-P
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.110" (2.8mm)
Ingress Protection IP40
Operating Force 51gf
Release Force 5.099gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.039" (1.0mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 200,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number SS-01GL
Other Names SS-01GLPT BY OMZ,SS01GLPTBYOMZ,SS01GLPT,SW779
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233425-SS-01GLPT
Ultra Librarian 3D Model Ultra Librarian SS-01GLPT CAD Model

Description

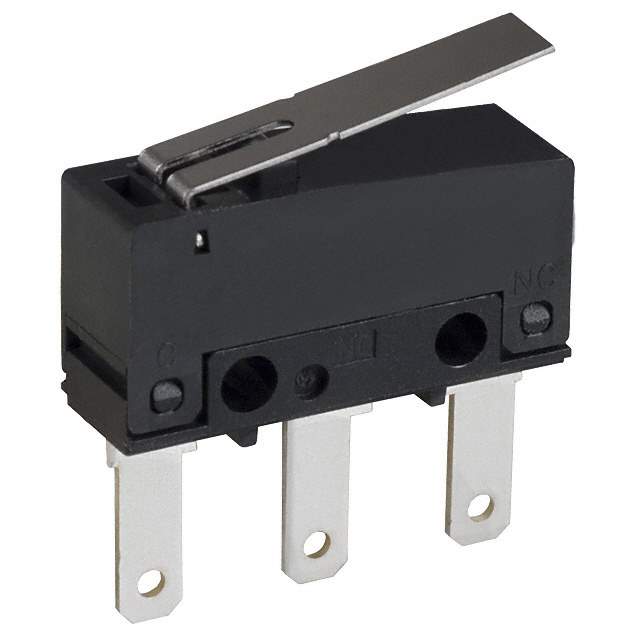

The SS-01GLPT is a limit switch from Omron Electronics Inc-EMC Div that comes in a tray package of 500.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever, Straight
  • Operating Force: 51gf
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 1,000,000 cycles
  • Release Force: 5.099gf
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.039" (1.0mm)
  • Operating Position: 0.345" (8.8mm)
  • Voltage Rating AC: 125V
  • Voltage Rating DC: 30V
  • Current Rating: 100mA (AC/DC)
  • Mounting Type: Chassis Mount
  • Ingress Protection: IP40
  • Temperature Range: -25°C to 85°C
