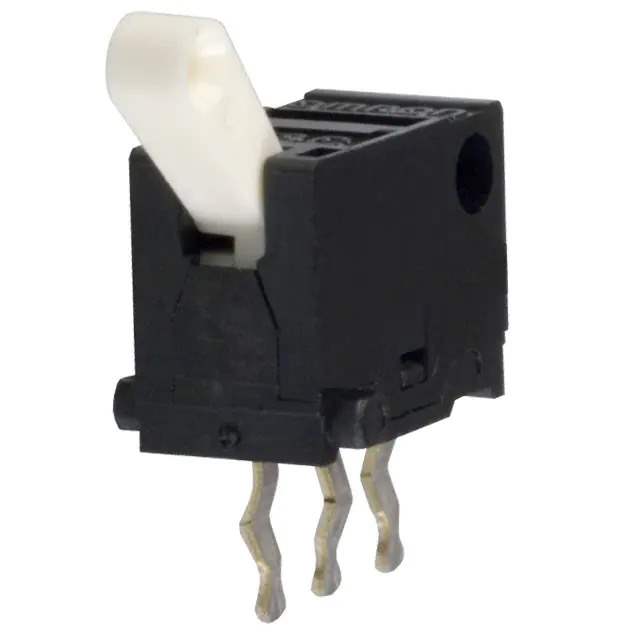

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Omron
Series D3C
Package Bulk
Product Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Angled Toggle (Detector)
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP00
Operating Force 40gf
Release Force 3.059gf
Operating Position 0.138" (3.5mm)
Temperature Range - Operating -20°C ~ 80°C
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Base Product Number D3C
Standard Package 2,000 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 848316-D3C-1220
Ultra Librarian 3D Model Ultra Librarian D3C-1220 CAD Model

Description

The D3C-1220 is a limit switch from Omron, a trusted manufacturer of electronic components.

  • Series: D3C
  • Mounting Type: Through Hole
  • Termination Style: PC Pin
  • Actuator Type: Angled Toggle
  • Circuit Configuration: SPDT
  • Switch Function: On-Mom
  • Operating Force: 40gf
  • Mechanical Life: 50,000 Cycles
  • Operating Position: 0.138" (3.5mm)
  • Temperature Range: -20°C to 80°C
